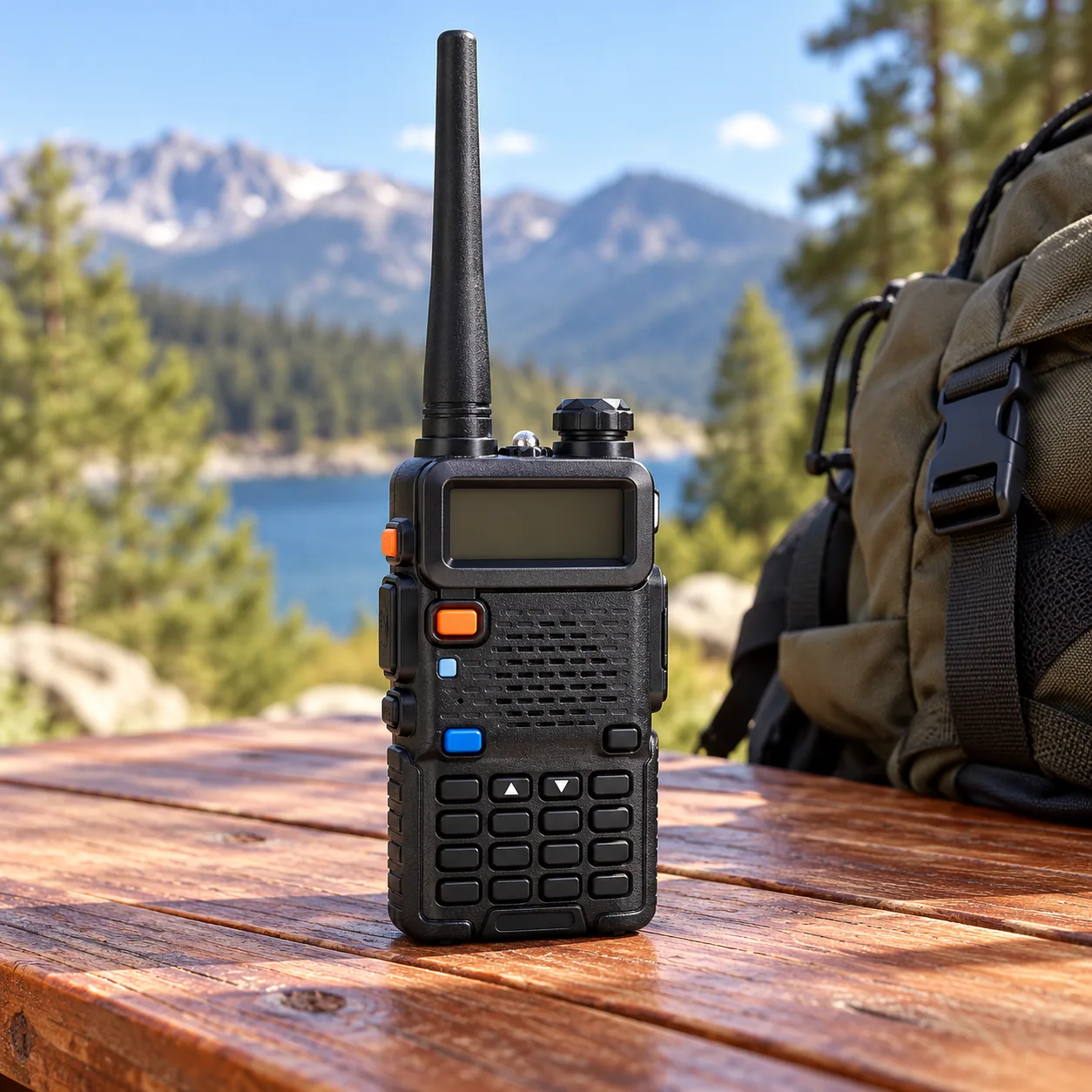

Baofeng UV-5R Handheld Radio

Dual-band communication with a clear display

The Baofeng UV-5R combines VHF/UHF dual-band communication with an LCD, numeric keypad and removable antenna. Dual display and dual watch bring two channels into view.

A top-mounted volume knob, side push-to-talk button and color-coded function keys put everyday controls within reach.

123456

1. 1
   Long antennaRemovable top-mounted antenna.
2. 2
   Power / volume knobAdjusts power and volume.
3. 3
   LCD displayDual-channel display.
4. 4
   Speaker grilleFront-facing audio.
5. 5
   Numeric keypadDirect entry and menu navigation.
6. 6
   Orange function key

Communication features

VOX voice activation, DTMF encoding and PC programming.

Everyday convenience

Battery saving, keypad lock, dual watch and alarm.

Feature	Function
VOX	Voice-activated transmission
DTMF	DTMF encoding
Programming	PC-programmable settings
Battery saving	Power-saving mode
Keypad lock	Built-in key lock
Dual Watch	Dual-channel monitoring
Alarm	Alarm function

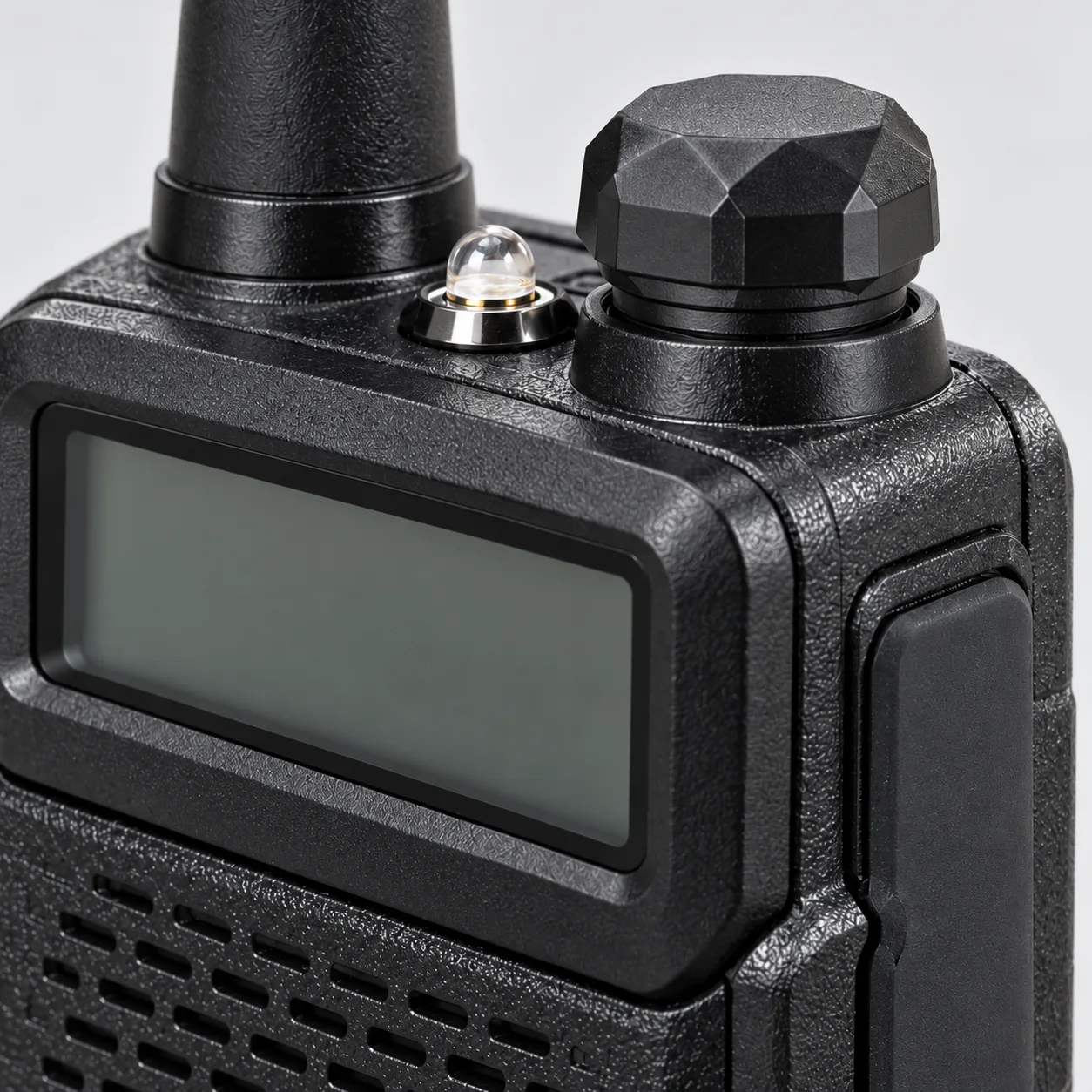

LED light, FM radio and accessory connection

The built-in LED flashlight and FM broadcast receiver add useful everyday functions. Separate side keys sit alongside the PTT control, while a cover protects the SP/MIC connection.

1234

1. 1
   Antenna baseRemovable antenna connection.
2. 2
   Transparent flashlight elementBuilt-in LED light.
3. 3
   Power / volume knobRidged rotary control.
4. 4
   Side-connector coverCover for the SP/MIC connection.

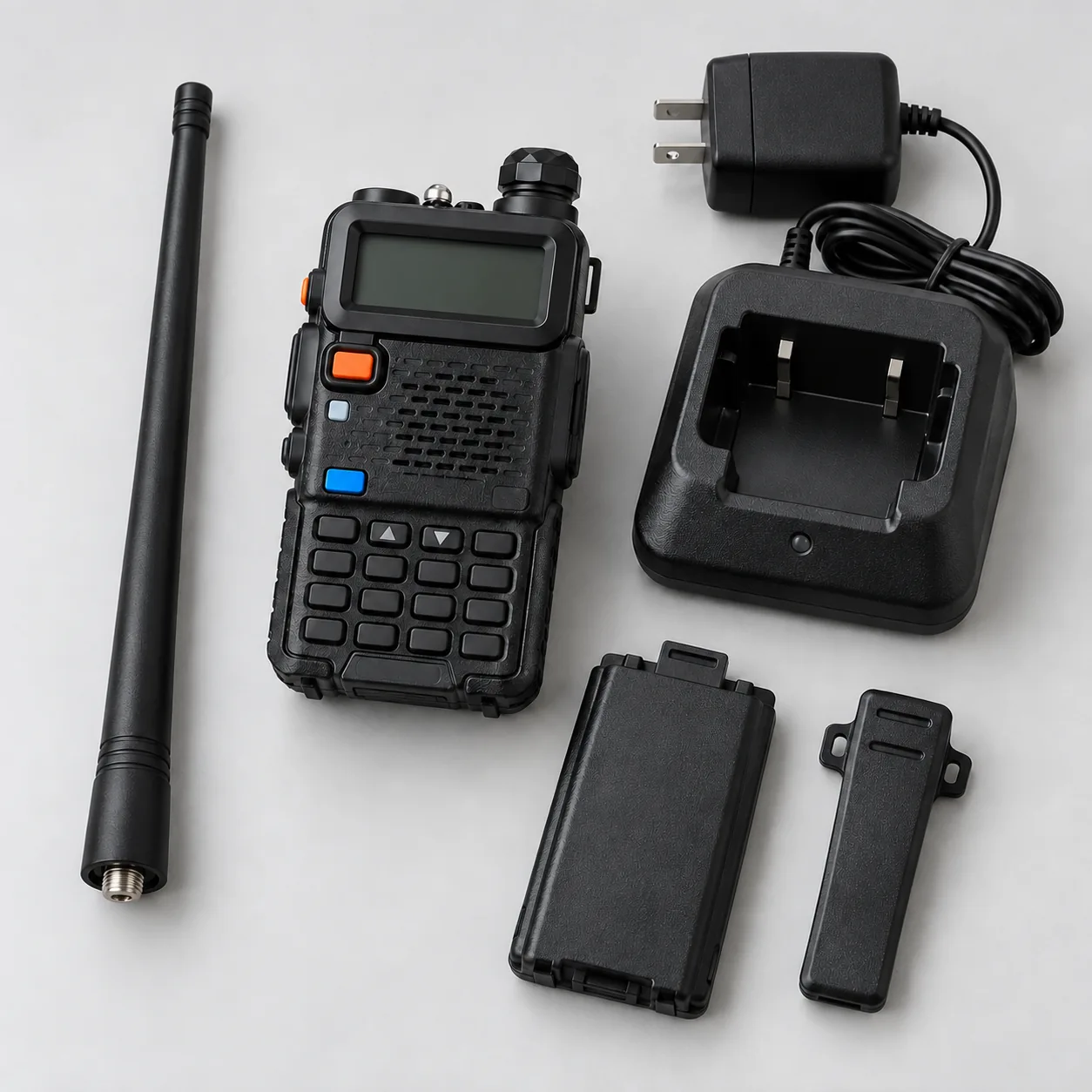

Desktop charging and removable battery

Desktop-charging packages bring together the radio, removable battery, antenna, charging cradle, power adapter and belt clip. The clip keeps the handset close during a working day.

123456

1. 1
   Handheld radioLCD and keypad handset.
2. 2
   Separate antennaRemovable antenna.
3. 3
   Desktop charging cradleDesktop battery charging.
4. 4
   Power adapterConnects to the charging cradle.
5. 5
   Separate batteryRemovable battery pack.
6. 6
   Belt clipFor carrying the handset.

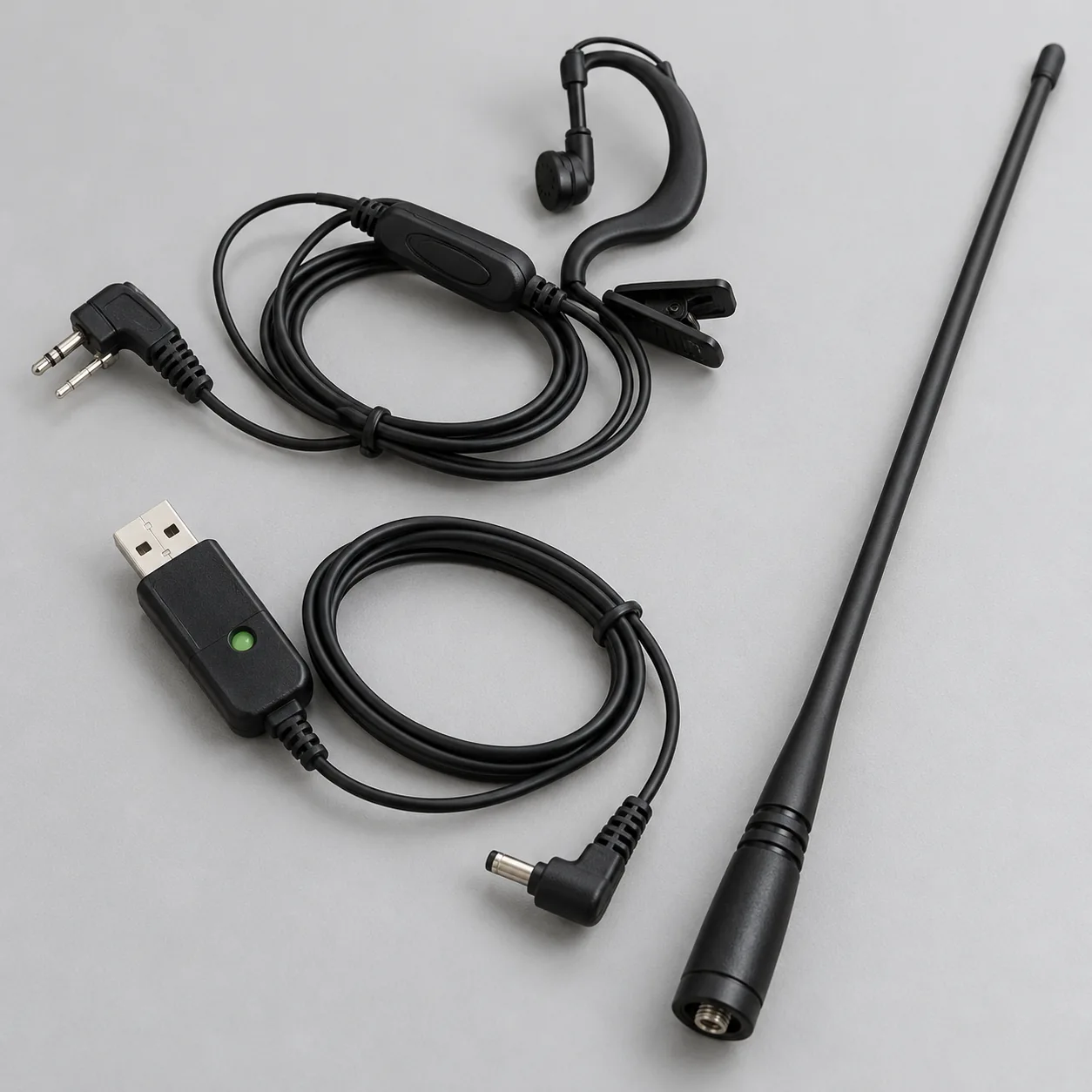

Headsets, antennas and charging choices

Accessory choices include an ear-hook headset with inline control, a long antenna and a USB-A charging lead with a right-angle round connector. US, EU and Chinese plug formats are available for the charging adapter.

123456

1. 1
   C-shaped ear hookCurved earpiece support.
2. 2
   Twin-pin headset plugHeadset connection.
3. 3
   Inline controlControl on the headset lead.
4. 4
   USB-A charging-lead endUSB charging connection.
5. 5
   Right-angle round connectorAngled charging connector.
6. 6
   Optional long antennaLong antenna accessory.

Type-C charging

Available with selected 5 W and 8 W packages and the thicker replacement battery.

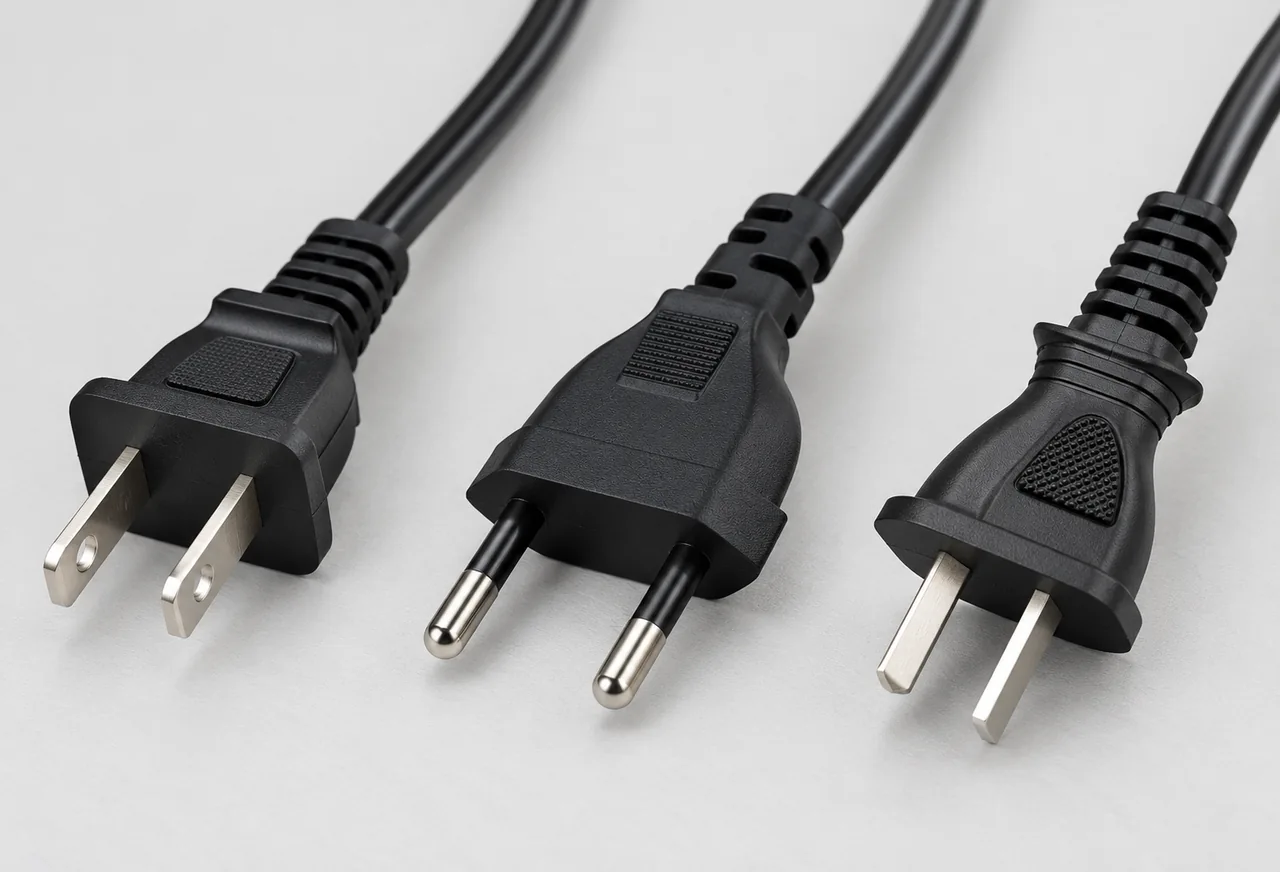

Language and plug options

Available with region-specific language options and charging plug formats.

Single radios, pairs and battery options

Standard and earpiece packages are available in 5 W and 8 W versions, with paired-radio and Type-C charging choices. Replacement batteries are available in standard and thicker Type-C designs.
