Slim LED exit signs with green illuminated panels in single- or double-sided formats, with a choice of directional, exit and floor-number layouts.
Tap image to enlargeClick image to enlarge
01 04
A closer look
The range offers ten panel arrangements across single- and double-sided formats. Options include directional arrows, exit layouts, and floor indication.
| Format | Panel choices |
|---|---|
| Single-sided | Left arrow / right arrow / two-way arrow |
| Single-sided | Safety exit / evacuation exit / floor indication |
| Double-sided | Safety exit / evacuation exit |
| Double-sided | Single-direction arrow / two-way arrow |

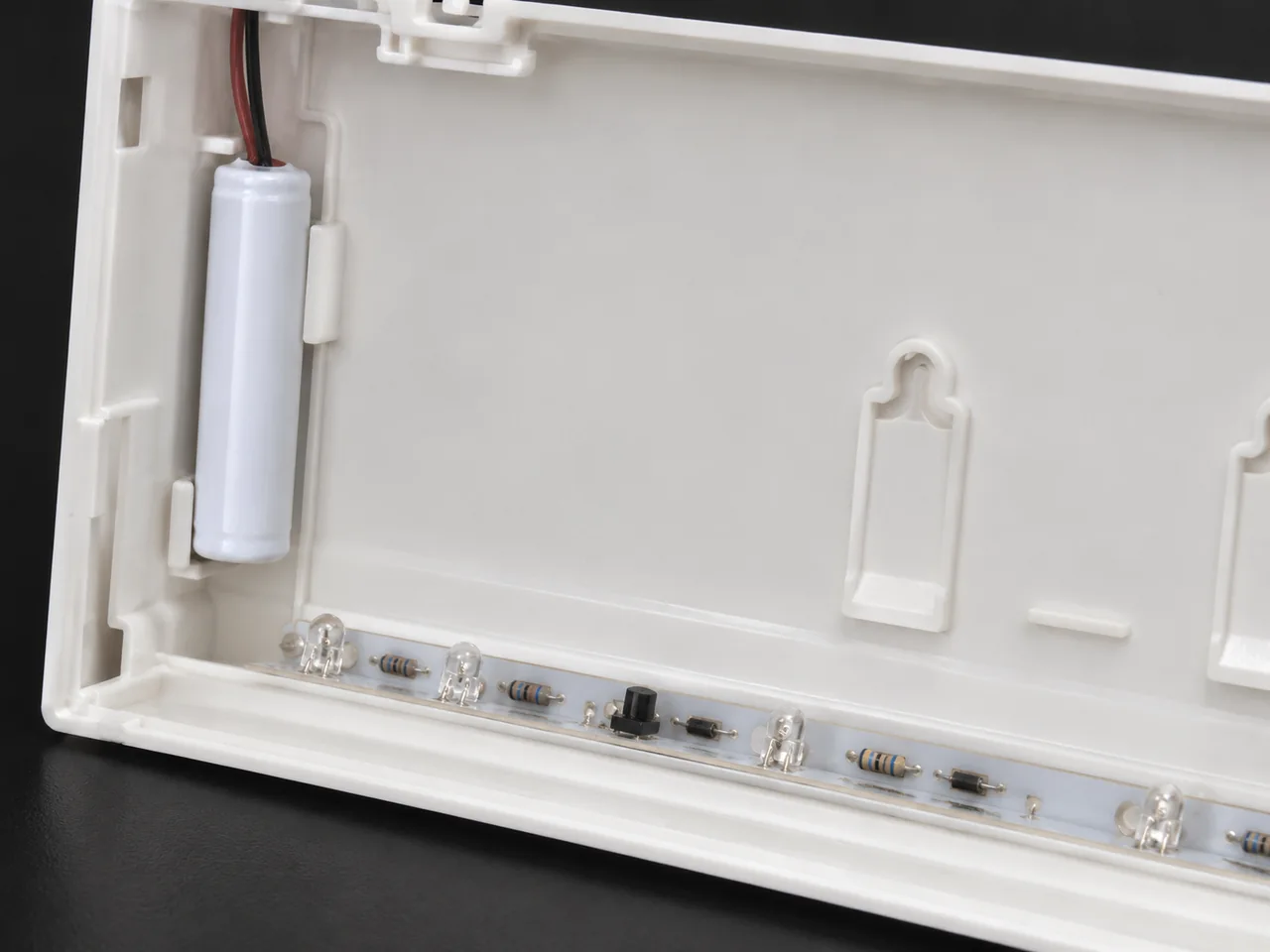

The shallow enclosure contains an LED strip, control components and a side-mounted backup battery. A diffusing front panel spreads the light across the sign, with automatic illumination when mains power fails.
Side-mounted battery component.
LEDs and circuit board along the lower edge.
Molded mounting feature inside the shell.

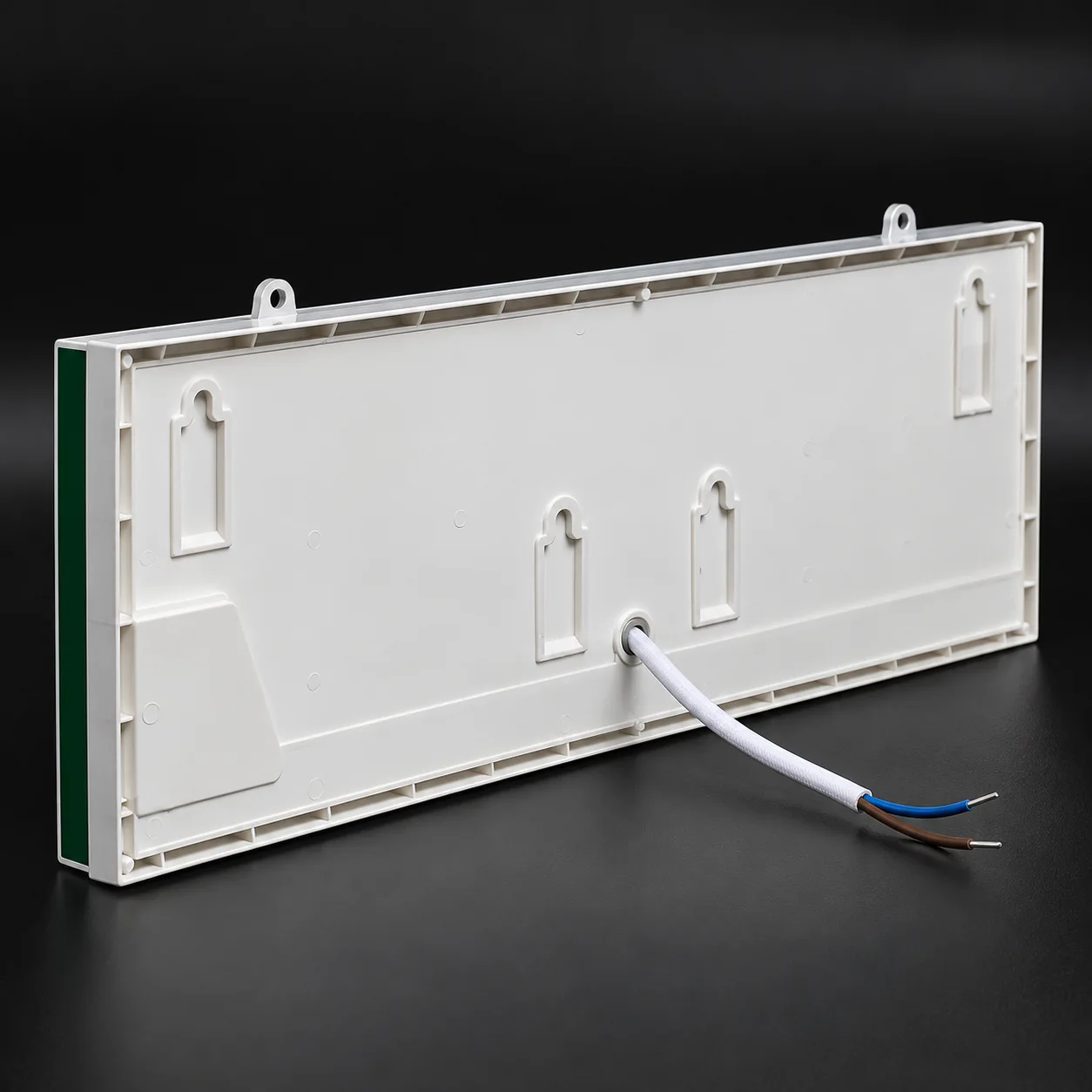

The thin rear shell has four keyhole-shaped fixing positions, two upper suspension ears and a central cable exit.

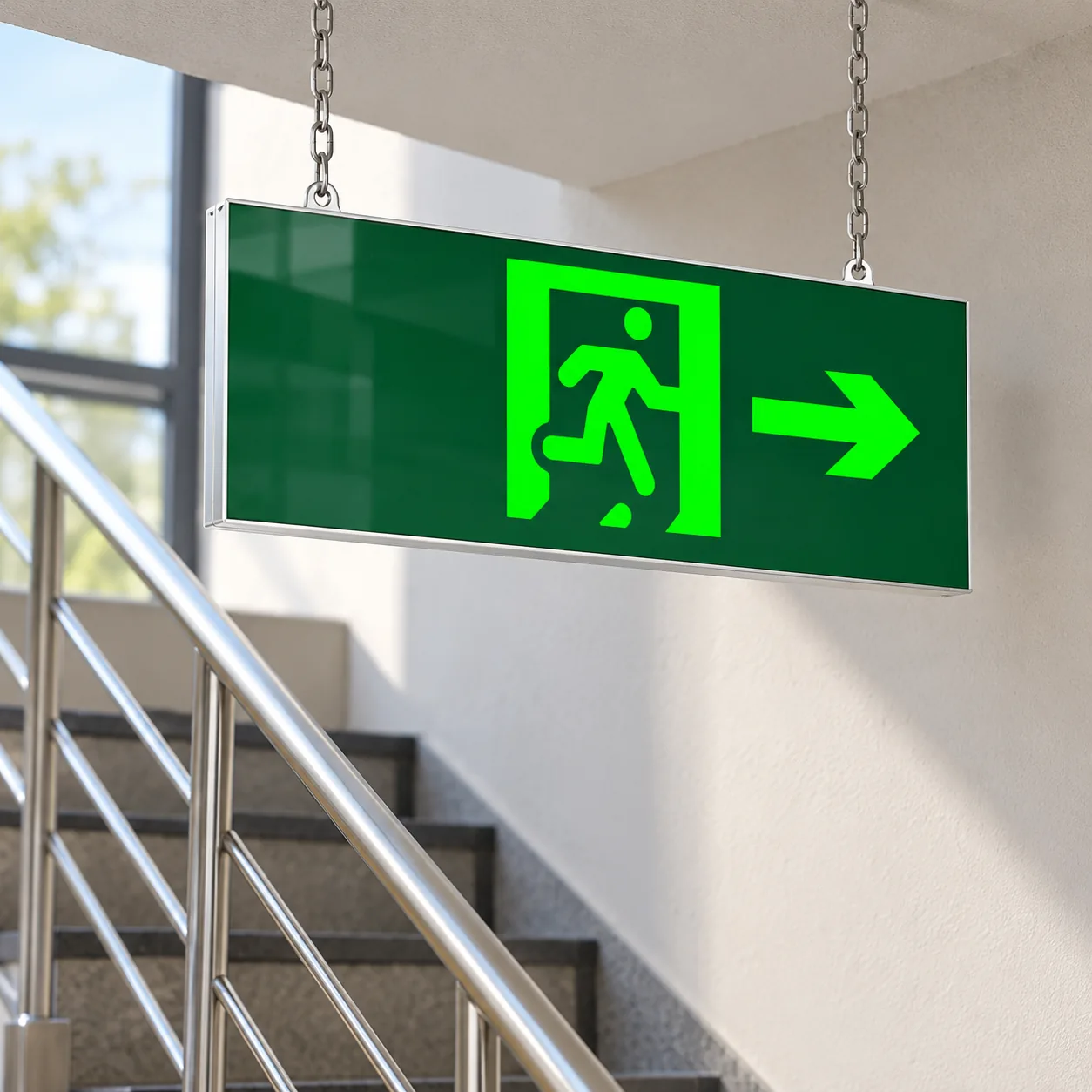

Single-sided formats suit wall placement, while double-sided versions offer visibility from opposite approaches in suspended installations.
The rectangular plastic body measures 352 × 135 × 14 mm, combining a low-profile enclosure with a green illuminated panel.
| Feature | Specification |
|---|---|
| Dimensions | 352 × 135 × 14 mm |
| Enclosure | Plastic |
| Lighting | LED |
| Face formats | Single / double |
| Mounting | Wall / suspended |
