Power & Emergency RadiosModel V1

V1 Portable Power Station

A LiFePO4 portable power-station line enclosed in a metal housing with a top handle, providing 128–768 Wh battery options, 220 V modified sine-wave AC output, USB and DC ports, and an integrated LED light.

Tap image to enlarge

01 04

Series
V1 / YL-V1
Battery
LiFePO4; 12.8 V nominal
Energy options
128 / 256 / 384 / 512 / 640 / 768 Wh
  • Battery capacity options
  • Metal enclosure and carry handle
  • AC and DC outlet layout
Request a quotesales@wkeme.com

A closer look

Product details

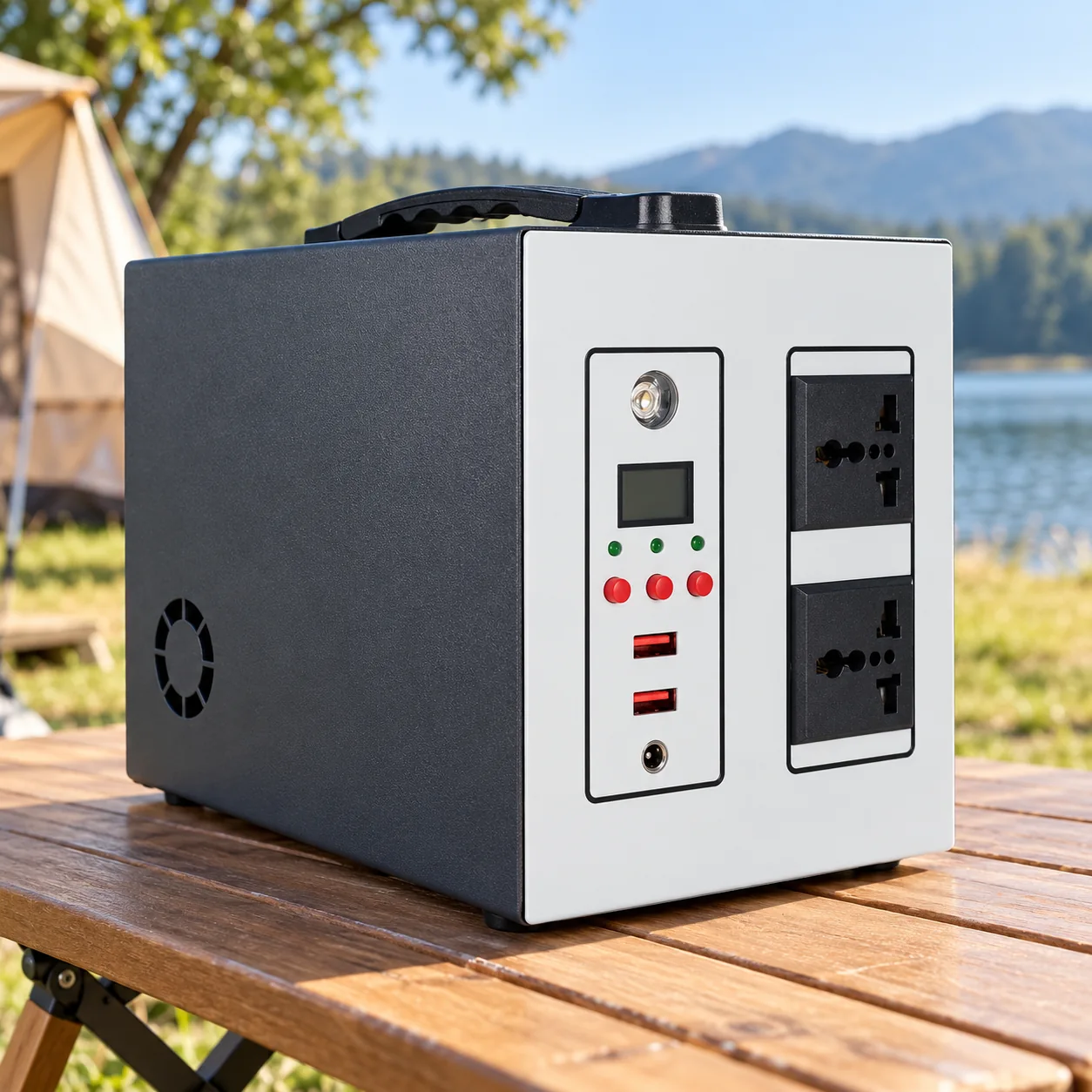

Portable power in a metal enclosure

A top carrying handle, front display and side ventilation bring the main features together in a compact box-shaped unit. Six battery configurations cover 128–768 Wh of stored energy.

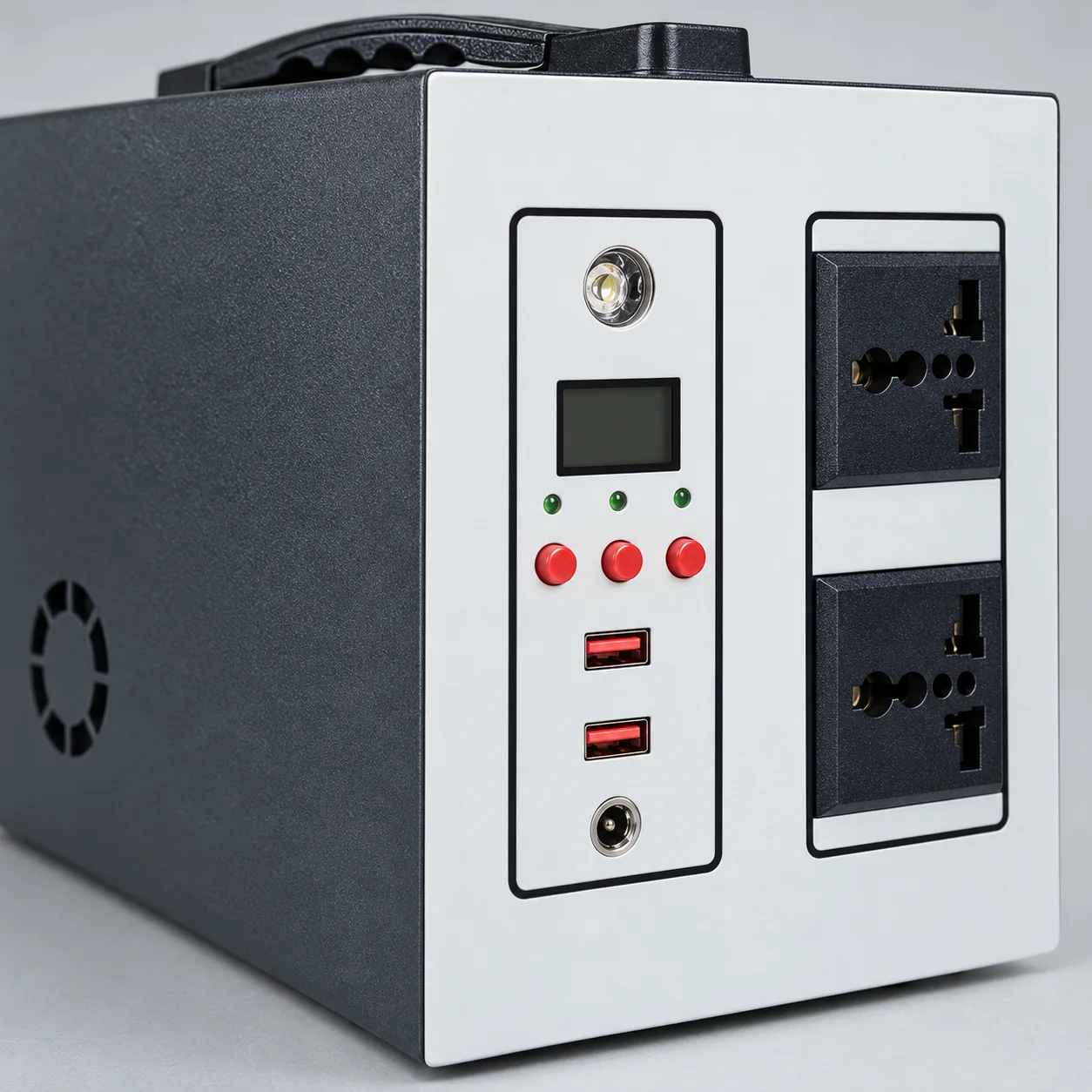

AC, USB and DC on one panel

Two AC sockets, two USB ports and a round DC connection sit on the front panel alongside the display and physical controls. The AC output is 220 V, 50 Hz with a modified sine wave. An integrated 3 W LED provides a separate lighting function.

  1. 1
    Display window

    Front status display.

  2. 2
    Upper USB port

    Upper USB connection.

  3. 3
    Lower USB port

    Lower USB connection.

  4. 4
    Upper AC socket

    Upper AC outlet.

  5. 5
    Lower AC socket

    Lower AC outlet.

  6. 6
    Round DC connection

    Round DC connection.

Mains and solar charging options

The station accepts a matched mains charger. Solar-panel and vehicle-charging arrangements are also available as configuration options.

The mains charger indicator is red during charging and green when the battery is fully charged.

Solar-panel options

The 15 W panel has a fixed format. The 30 W, 60 W and 120 W options fold into two sections and have stainless-steel carrying handles. A 3 m connecting cable is available with the panel kit.

PanelOpen sizeFolded size
15 W290 × 350 mmFixed panel
30 W580 × 350 mm290 × 350 mm
60 W700 × 530 mm350 × 530 mm
120 W1,070 × 670 mm535 × 670 mm

LiFePO4 battery configurations

The range uses a four-series LiFePO4 battery arrangement at 12.8 V nominal. Six battery capacity options range from 128 Wh to 768 Wh.

ModelBattery capacityEnergy
V1P-21012.8 V / 10 Ah128 Wh
V1P-32012.8 V / 20 Ah256 Wh
V1P-33012.8 V / 30 Ah384 Wh
V4-54012.8 V / 40 Ah512 Wh
V4-55012.8 V / 50 Ah640 Wh
V4-56012.8 V / 60 Ah768 Wh

Power for portable setups

The carrying format brings stored energy to temporary lighting, outdoor work and portable-device setups. Different battery sizes provide options for a range of equipment assortments.

Station and solar-kit packages

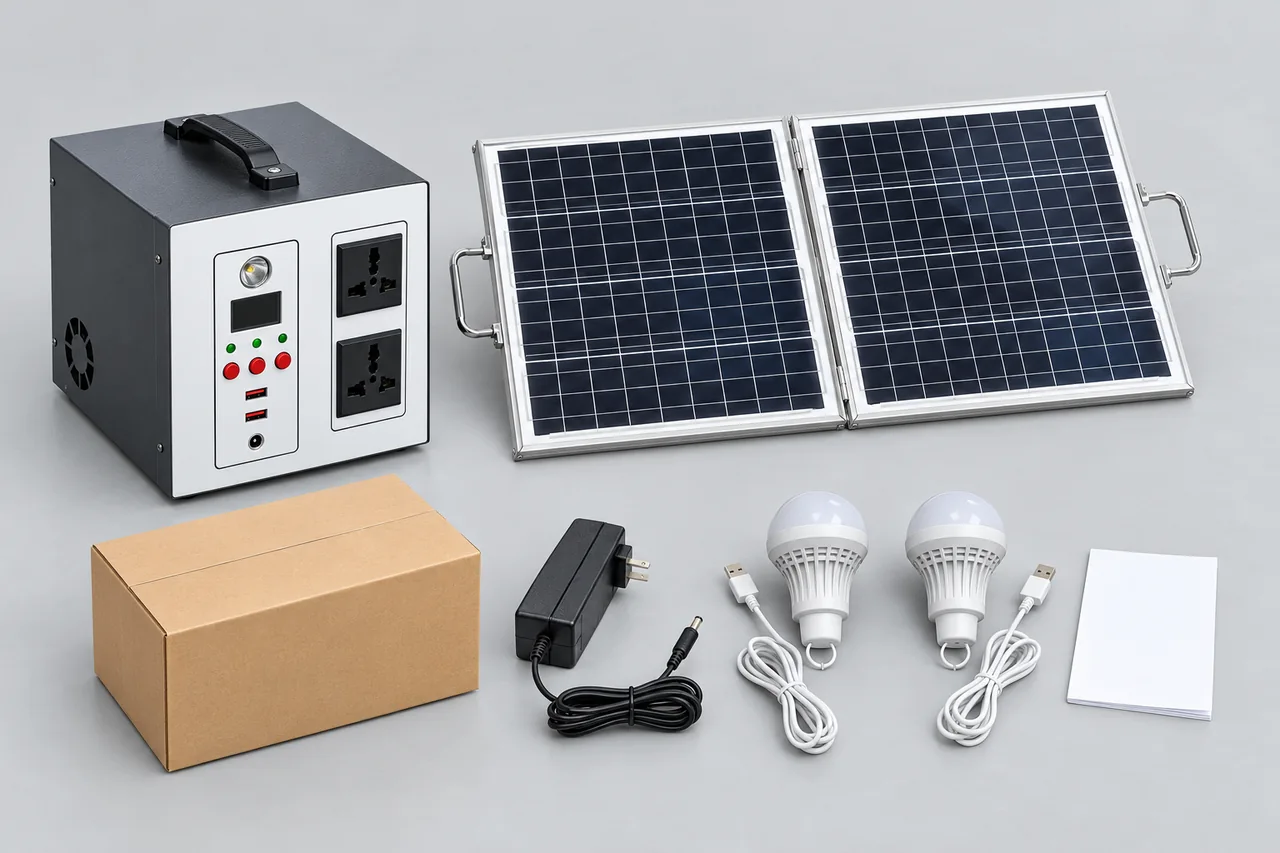

Available packages include a standalone station and a complete solar-lighting kit.

PackageContents
Standalone stationPower station, mains charger, manual and packing box
Solar-lighting kitPower station, mains charger, manual, packing box, solar panel and two USB lighting bulbs

Carry handle and fan cooling

The metal enclosure has a top handle and side ventilation. An internal fan and airflow channels support the compact component layout.

Electrical specification

FeatureSpecification
Battery chemistryLiFePO4
Nominal battery voltage12.8 V
AC output220 V / 50 Hz
AC waveformModified sine wave
DC output12 V / 8 A maximum
Mains charging input14.6 V / 10 A maximum
Integrated lamp3 W LED
V4-540 / V4-550 / V4-560 AC output500 W

Specifications

SKU
WK-991279339900
Brand
WKEME
Series
V1 / YL-V1
Battery
LiFePO4; 12.8 V nominal
Energy options
128 / 256 / 384 / 512 / 640 / 768 Wh
AC output
220 V, 50 Hz; modified sine wave
DC output
12 V / 8 A maximum
Charging input
14.6 V / 10 A maximum
Built-in light
3 W LED
Standard package
Power station, mains charger, manual and box
