A split-panel solar street-light range featuring separate LED heads and solar panels. Offered with wall-arm assemblies or complete pole packages in heights from 3.5 to 8 m.
Tap image to enlargeClick image to enlarge
01 03
A closer look

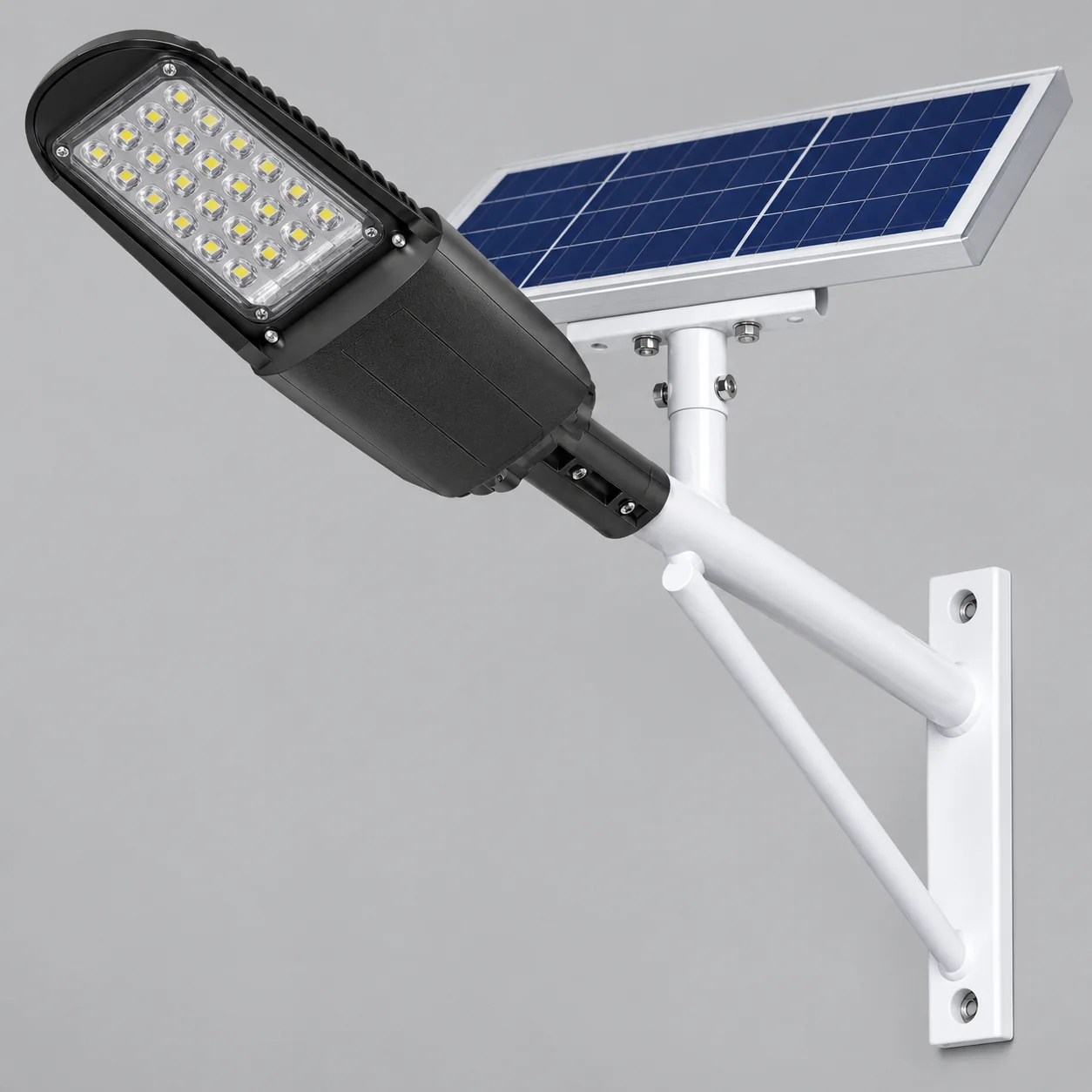

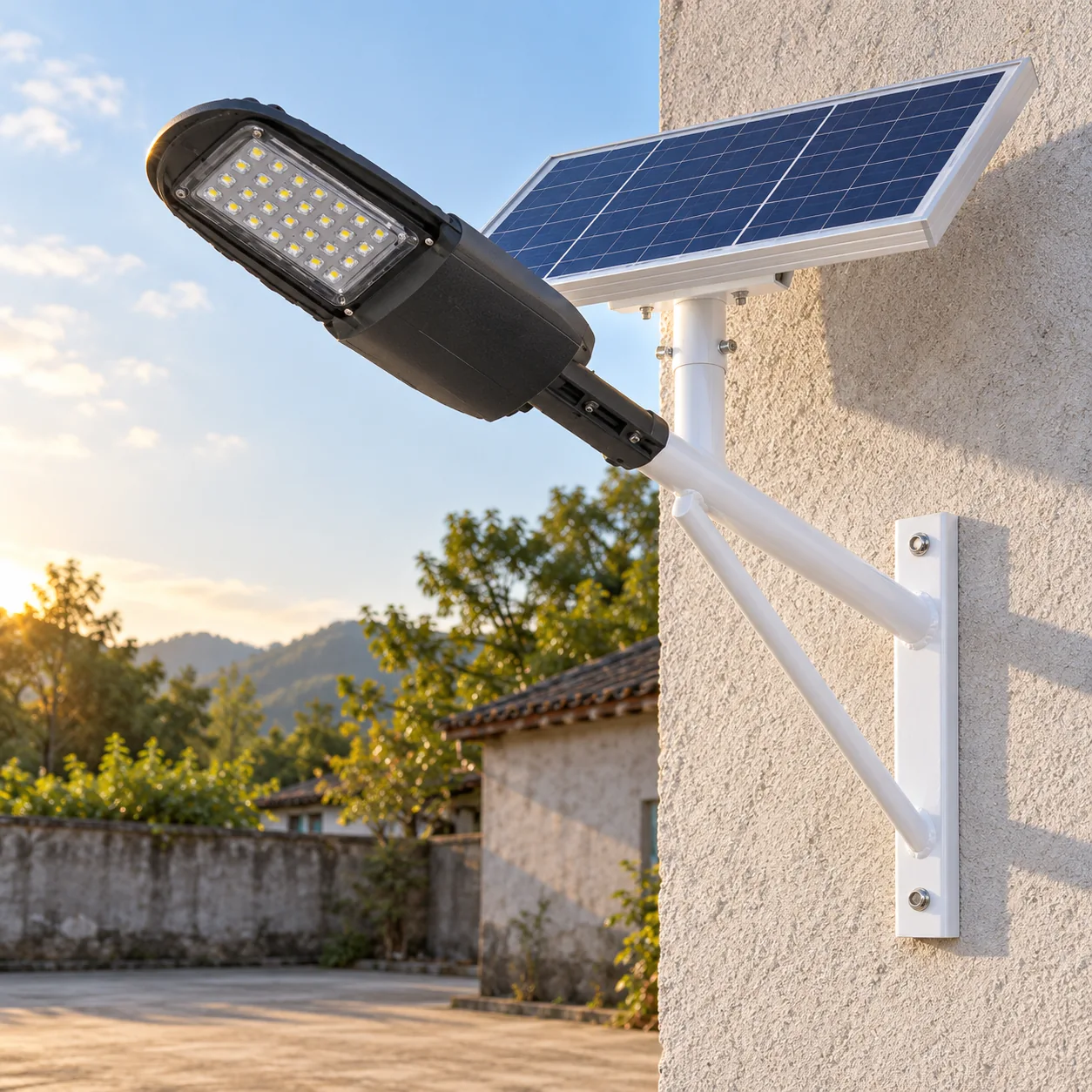

The wall-mounted assembly places a tilted solar panel above and behind the forward-projecting LED head. A white forked arm and diagonal brace join the components to a vertical wall plate.
Separate tilted solar panel.
Forward-projecting LED lens array.
Support for the panel and light head.
Vertical plate with mounting holes.
The range includes standard and high-brightness wall assemblies, plus complete pole packages at six heights.
| Format | Options |
|---|---|
| Wall assembly | Standard / high-brightness |
| Pole package | 3.5 / 4 / 5 / 6 / 7 / 8 m |
The mounting plate, diagonal brace and forked arm create a joined support for the panel and light head. The separate panel format keeps the solar surface above the lighting unit.
The wall-arm configuration combines a 50 W LED head, 40 W solar panel and 40 Ah battery.
| Component | Specification |
|---|---|
| LED head | 50 W nominal; 530 × 220 mm |
| Solar panel | 40 W nominal; 670 × 445 mm |
| Battery | 40 Ah |
| Wall plate | 400 mm high |
| Support | Forked arm with diagonal brace |
