Trailer-mounted Light Tower

Name: Trailer-mounted Light Tower
Brand: WKEME
SKU: WK-924094170435

Trailer-mounted area lighting systems featuring elevated lamp heads, telescopic masts, and stabilizing supports, supplied in separate solar and engine-powered configurations.

Tap image to enlargeClick image to enlarge

01 05

Format: Two-wheel lighting trailer
Power options: Solar / engine-powered
Engine-model mast heights: 6 m / 7 m / 9 m

Elevated area lighting
Solar and engine-powered options
Telescopic masts

Request a quotesales@wkeme.com

A closer look

Product details

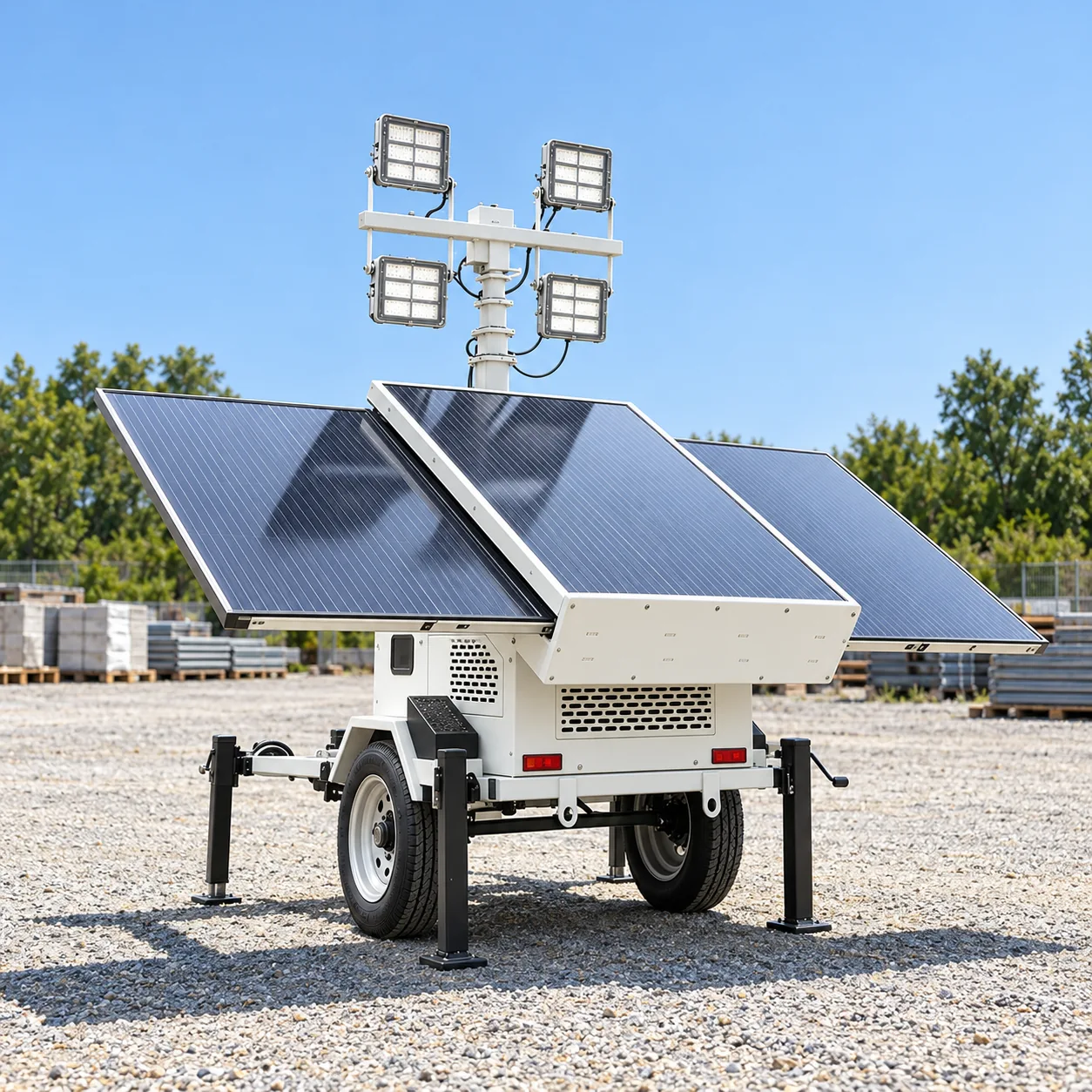

Solar lighting trailer

Folding solar panels sit above a white-and-gray power enclosure. A four-lamp crosshead rises on a vertical mast, supported by a two-wheel chassis and independent ground stabilizers.

1
Four-lamp head
Elevated area-lighting assembly.
2
Folding side solar panel
Deploys beside the central panel.
3
Central solar panel
Mounted above the power enclosure.
4
Lifting mast
Raises the lamp assembly.
5
Ground stabilizers
Independent support feet.
6
Two-wheel chassis
Trailer frame and wheels.

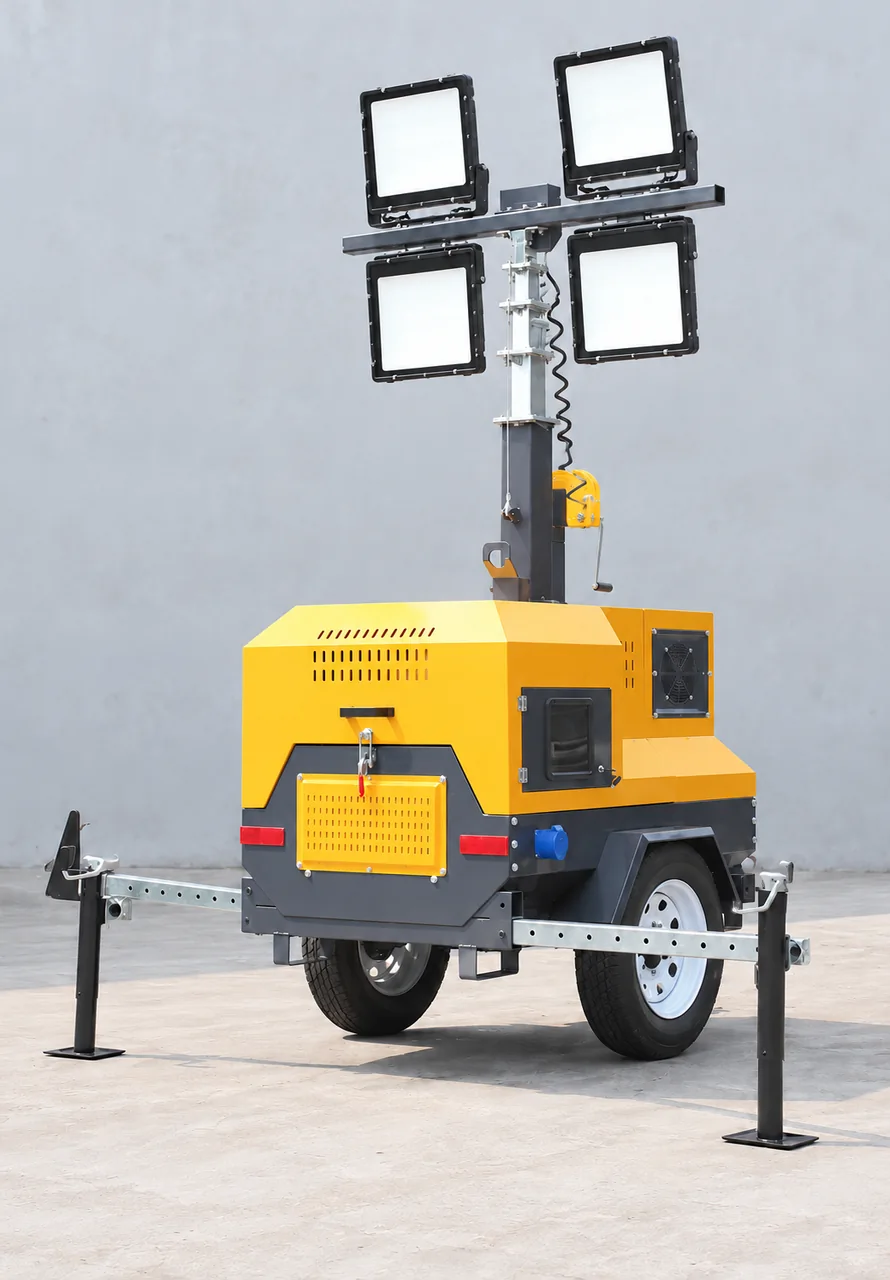

Engine-powered tower

The engine-powered trailer pairs a yellow enclosure with a telescopic mast, coiled power cable and winch. Four square lamps sit on crossbars above the gray chassis, with extending outriggers and support feet below.

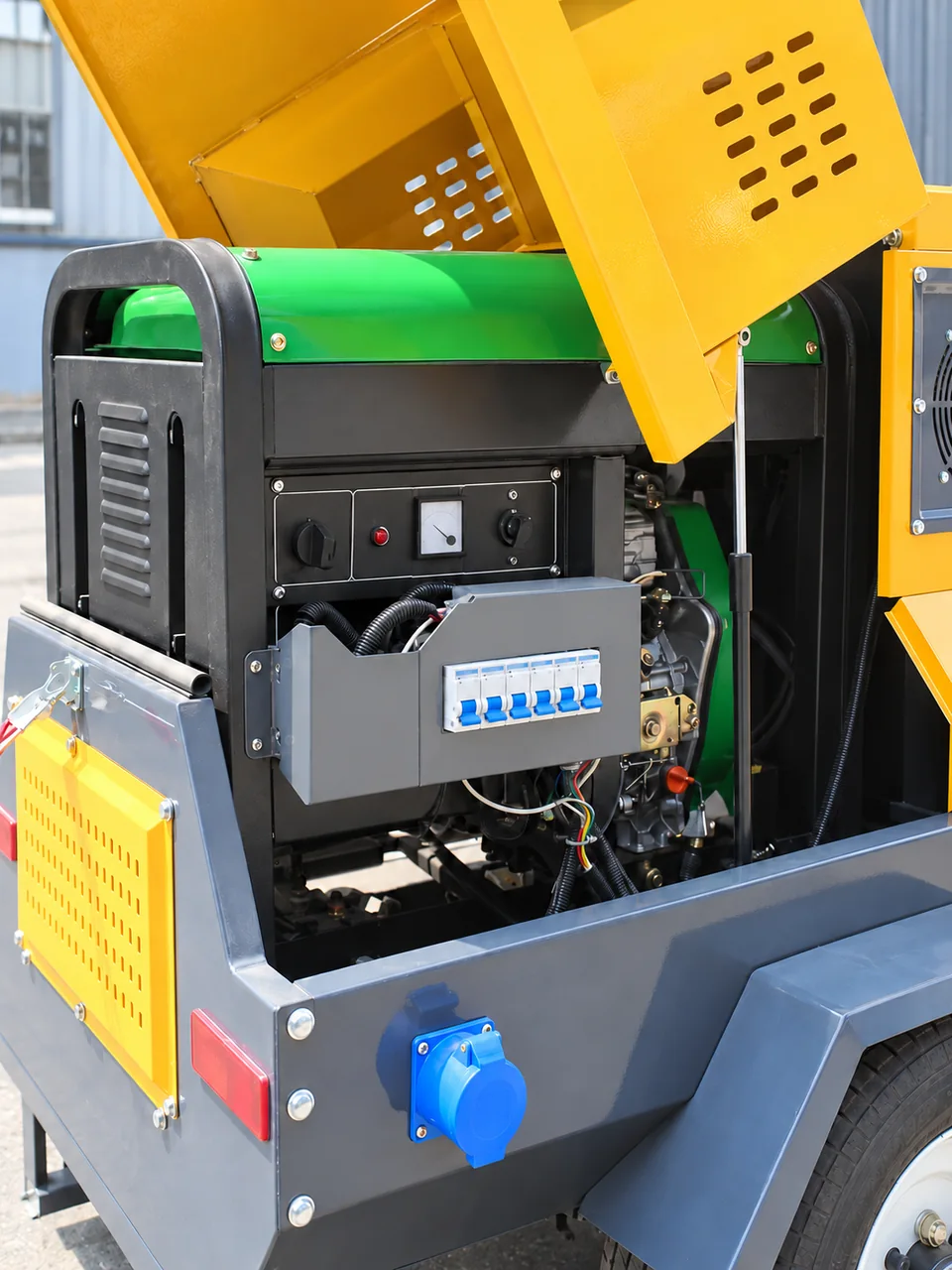

Enclosed power and controls

The raised cover provides access to the engine-generator assembly, control area and electrical enclosure. Circuit breakers and a covered exterior socket are grouped around the trailer's power compartment.

1
Engine-generator set
Power assembly inside the enclosure.
2
Circuit-breaker area
Grouped circuit-breaker controls.
3
Cover support rod
Supports the raised cover.
4
External blue socket
Covered exterior connection.
5
Raised yellow cover
Ventilated compartment cover.

Lamp-head choices

The range offers LED, metal-halide, tungsten-halogen and balloon-style lighting assemblies for different area-lighting requirements.

Telescopic mast options

Engine-powered towers are available in 6 m, 7 m and 9 m formats. The 6 m and 7 m towers use five mast sections; the 9 m tower uses seven. Manual-crank and hydraulic lifting options are available for the 6 m model.

Painted enclosure

The engine-powered assembly uses a painted enclosure with a ventilated cover, integrated control area and wheeled base.

Engine-powered model comparison

Three mast heights provide a choice of generator size, engine and lamp package.

Item	6 m tower	7 m tower	9 m tower
Engine options	Changchai / Changfa / Honda	Changchai / Changfa	Changchai / Kubota
Generator power	3 kW	5 kW	6 kW
Voltage	220 V	220 V	220 V
Mast height	0–6,000 mm	0–7,000 mm	0–9,000 mm
Mast sections	5	5	7
Weight	300 kg	500 kg	900 kg
Lamp package	2 × 400 W; 4 × 400 W option	4 × 400 W	4 × 400 W
Packing dimensions	2,000 × 600 × 1,000 mm	1,400 × 1,150 × 2,100 mm	2,000 × 1,300 × 2,400 mm

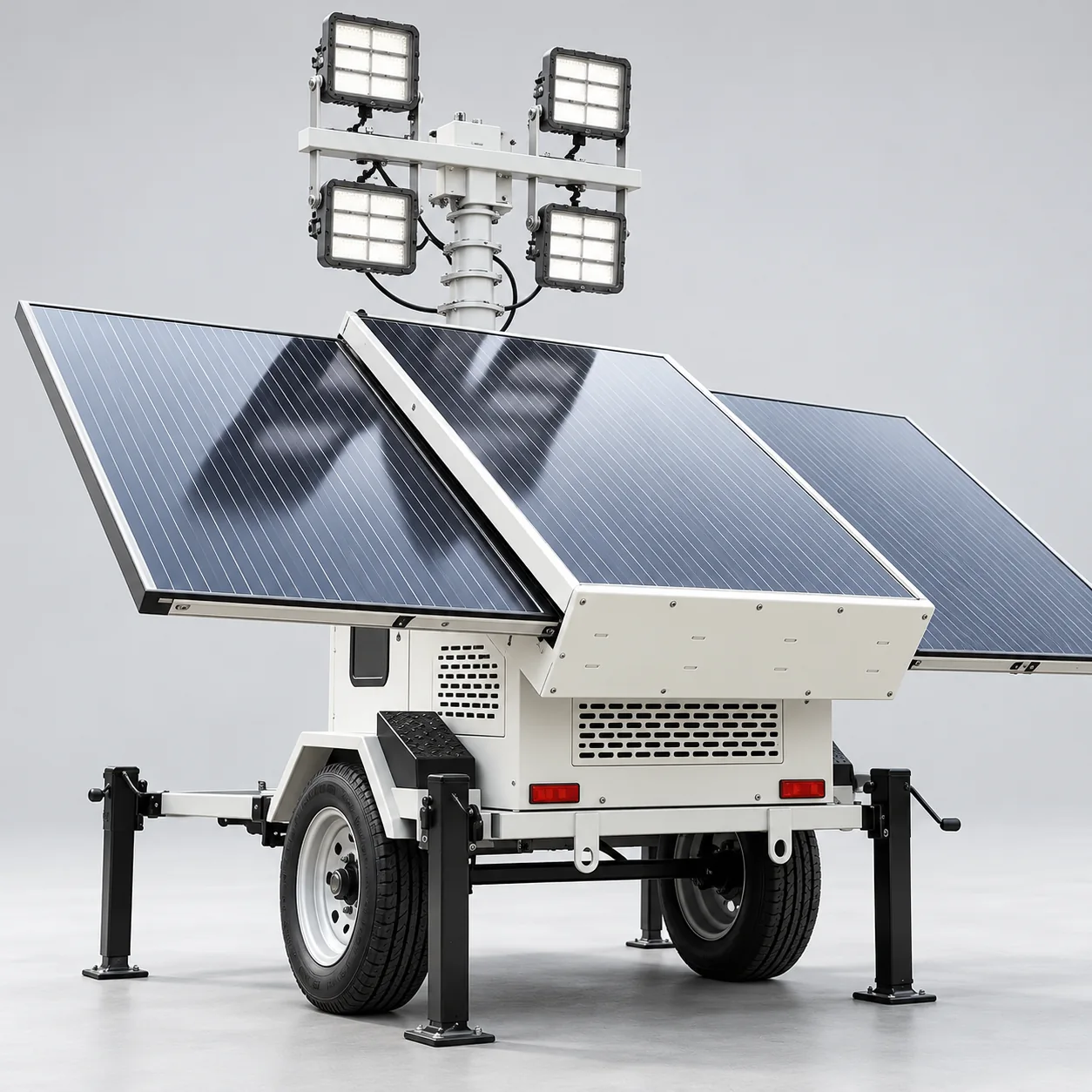

Solar trailer components

Solar panels and lamp assembly

The solar configuration combines an extended panel array with a four-lamp crosshead above the power enclosure.

Solar-panel array: Side panels extend beside the central panel above the enclosure.
Four-lamp crosshead: Four square lamp heads are mounted around the upper mast.

Trailer frame and ground supports

The solar lighting assembly sits on a two-wheel trailer with support legs extended around the chassis.

Two-wheel chassis: The wheeled frame carries the enclosure, mast and solar-panel assembly.
Ground supports: Outriggers and separate feet extend around the trailer to support its stationary setup.
