Air-beam field shelter
The white rectangular shelter has a ridge roof, screened side windows and an end entrance. The 12 m² layout has a 3 × 4 m footprint, with two windows on a long side and a door on the short end.
Shelter & Warmth
Inflatable Response Tent
An inflatable field shelter constructed with PVC air beams, an Oxford-fabric cover, and screened windows, available across seven footprints from 12 to 60 m².
Tap image to enlargeClick image to enlarge
01 09
- Frame
- PVC inflatable air beams
- Cover
- Oxford fabric
- Areas
- 12 / 15 / 20 / 30 / 40 / 50 / 60 m²
- Inflatable air-beam frame
- Seven footprint options
- Screened windows with covers
A closer look
Product details
Seven footprint choices
The range spans compact 12 m² shelters through larger 60 m² layouts.
| Area | Footprint |
|---|---|
| 12 m² | 3 × 4 m |
| 15 m² | 3 × 5 m |
| 20 m² | 5 × 4 m |
| 30 m² | 5 × 6 m |
| 40 m² | 5 × 8 m |
| 50 m² | 5 × 10 m |
| 60 m² | 6 × 10 m |
Cover and air-beam materials
An Oxford-fabric cover fits over PVC airtight-fabric beams. Heat-welded joints connect the support tubes around the roof and walls.
| Component | Material |
|---|---|
| Outer cover | Oxford fabric |
| Air-beam frame | PVC airtight fabric |
| Beam seams | Heat-welded joints |

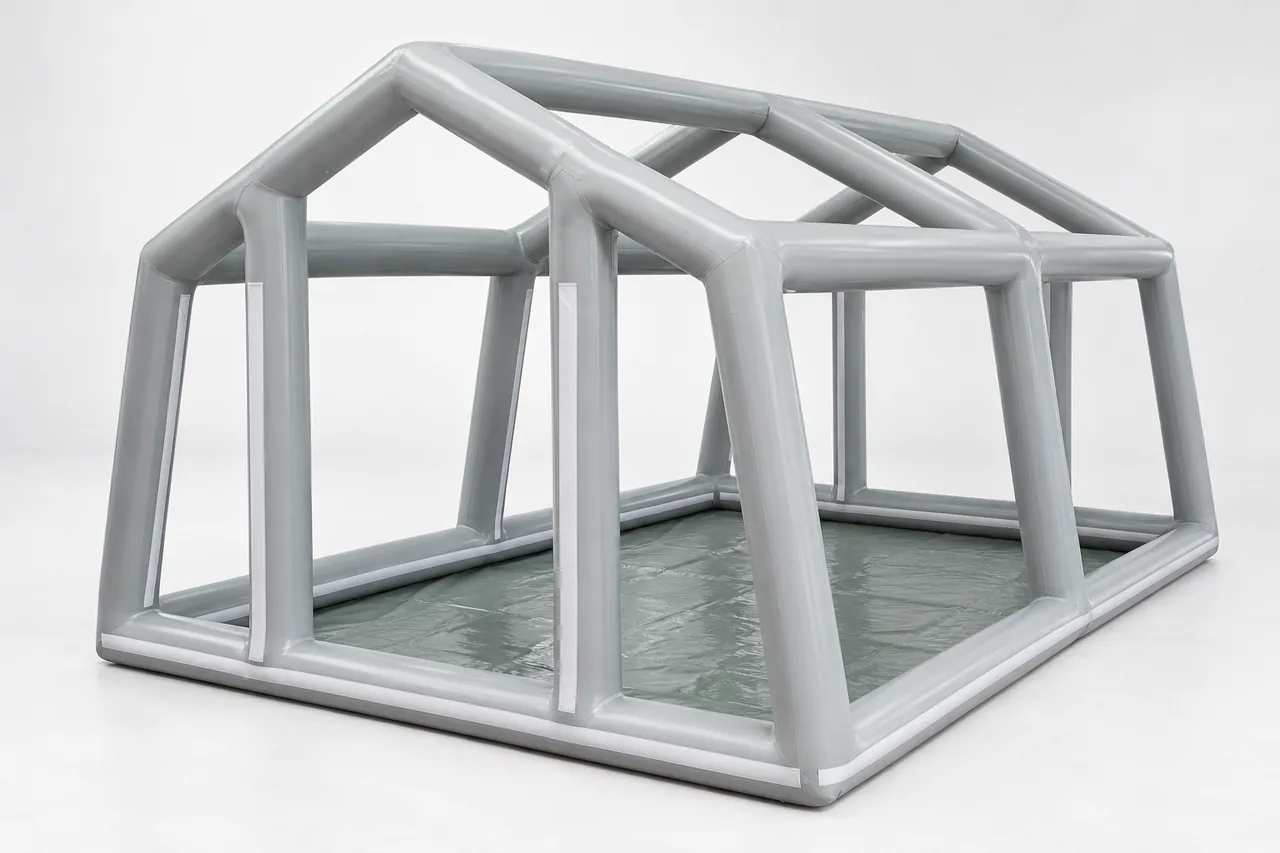

Connected air-frame structure
Roof arches connect through lateral tubes to a continuous lower perimeter. This integrated frame supports the roof and side walls within the selected footprint.

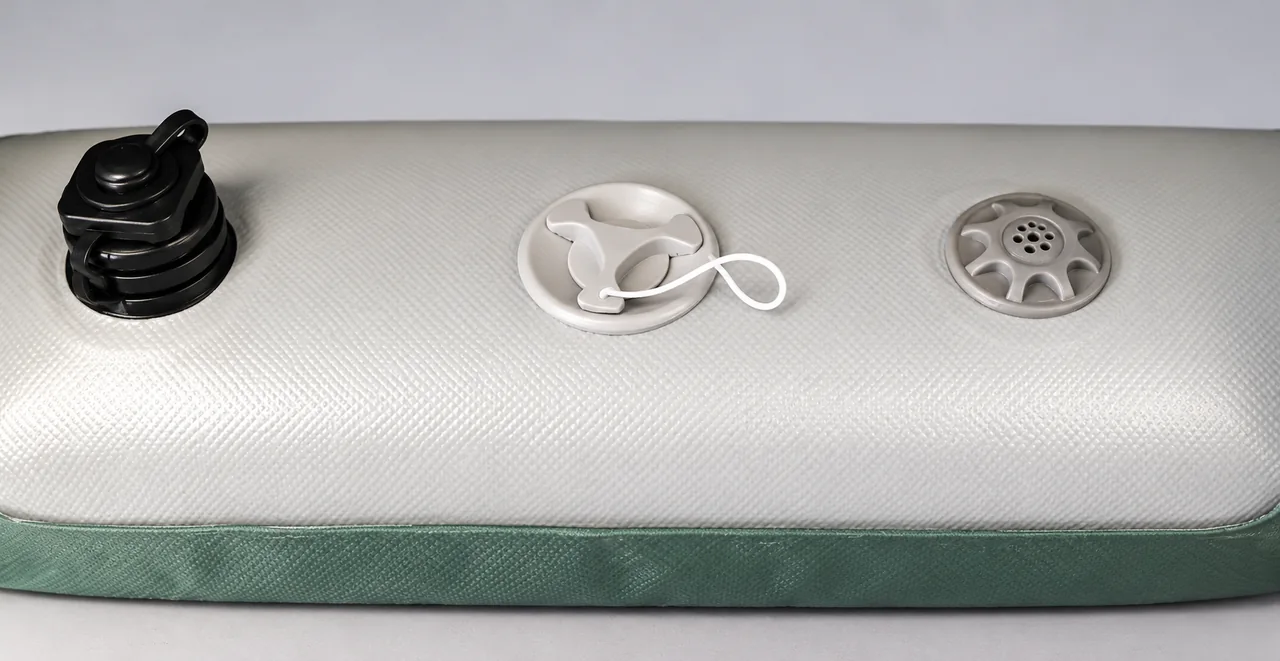

Valve and connector details
The air-frame connection area brings together a stepped inflation connector, tethered cap and circular valve seat.
- 1Black valve component
Stepped inflation connector.
- 2Tethered cap
Cap secured by a flexible tether.
- 3Round valve seat
Circular valve component.

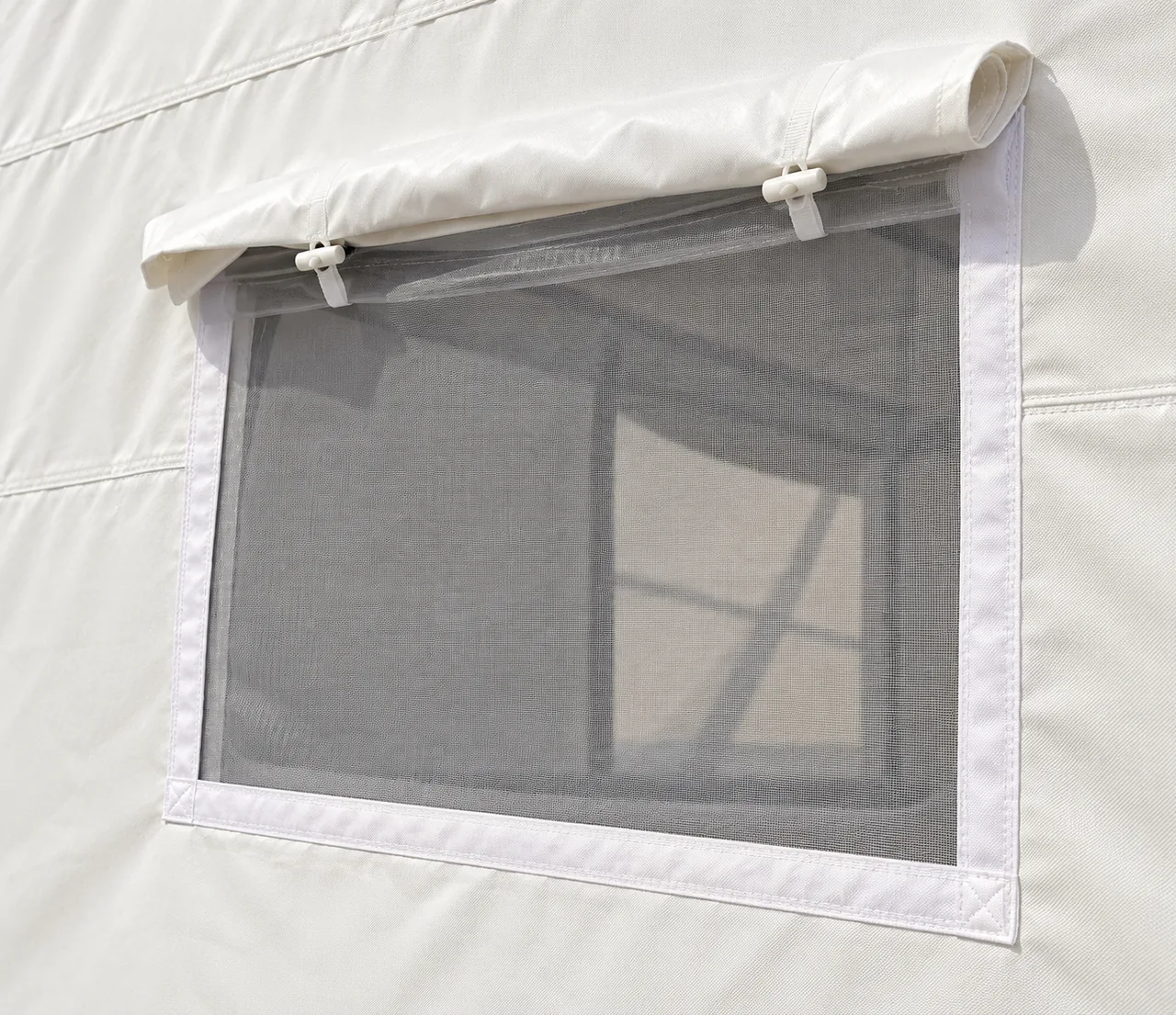

Mesh windows with outer covers
Fine mesh panels sit within bound fabric edges. Roll-up outer covers are held by buckle straps above the windows and lower for privacy.
- 1Mesh window
Mesh inner window panel.
- 2Rolled outer curtain
Outer cover rolled above the window.
- 3Curtain retaining strap
Buckle strap holding the cover.

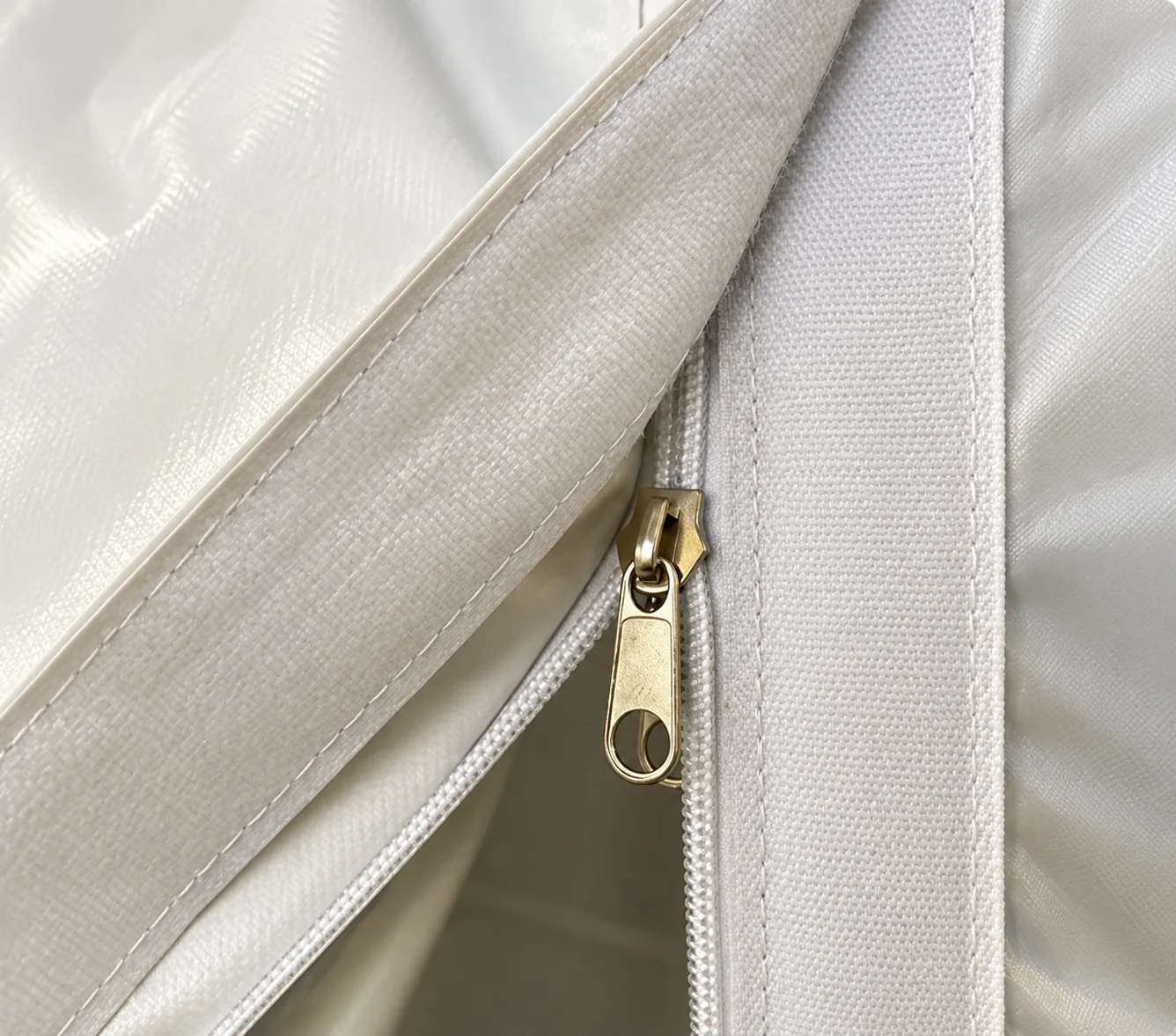

Layered entrance closures
Separate inner and outer zippers provide access through the entrance layers, with individual pullers and reinforced edges.

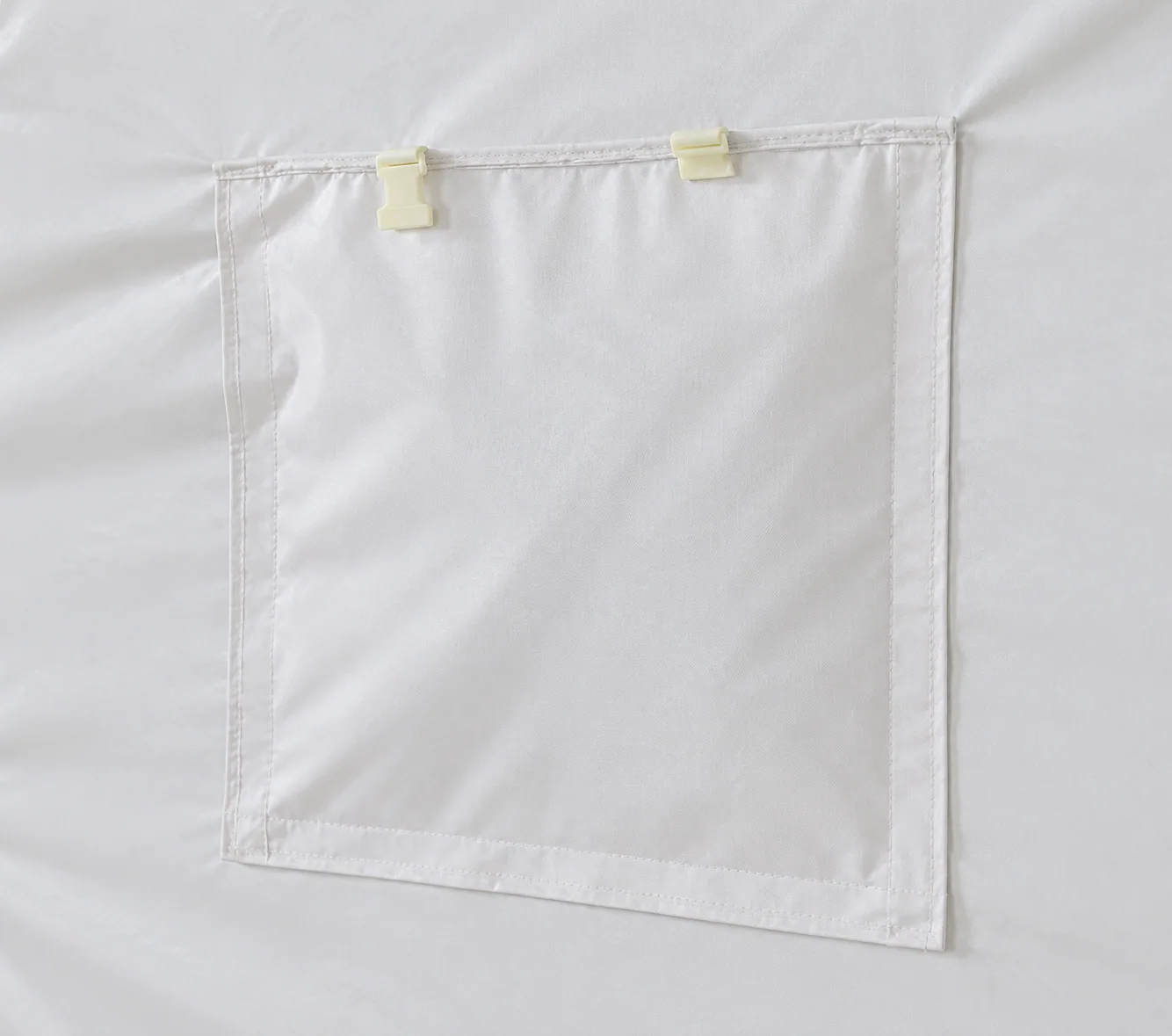

Covered service opening
A covered opening low in the wall provides a connection position for a ventilation or heating-and-cooling duct.

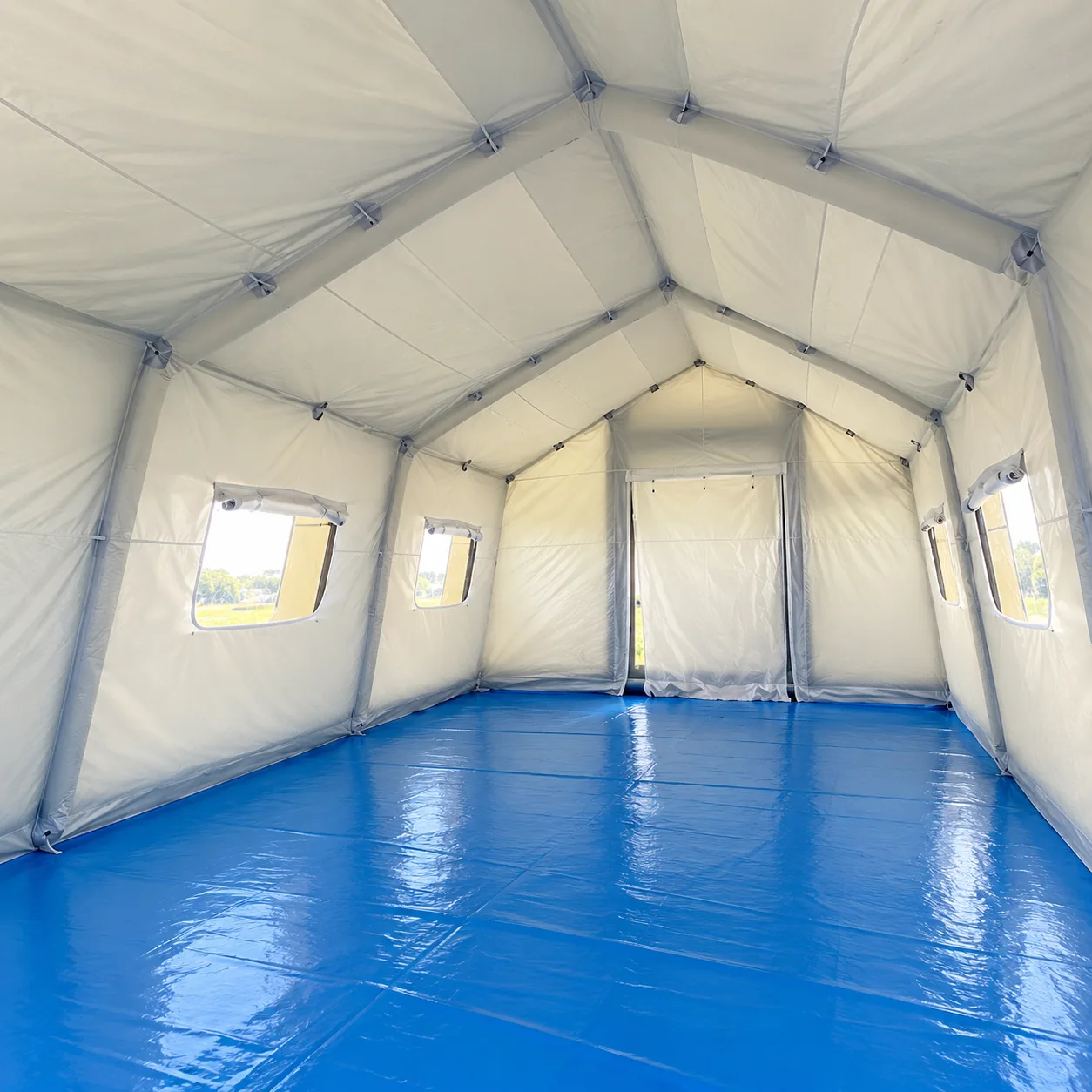

Open interior layout
Air beams follow the walls and roof, leaving an open floor area beneath. Screened windows admit daylight, with a blue groundsheet across the interior.

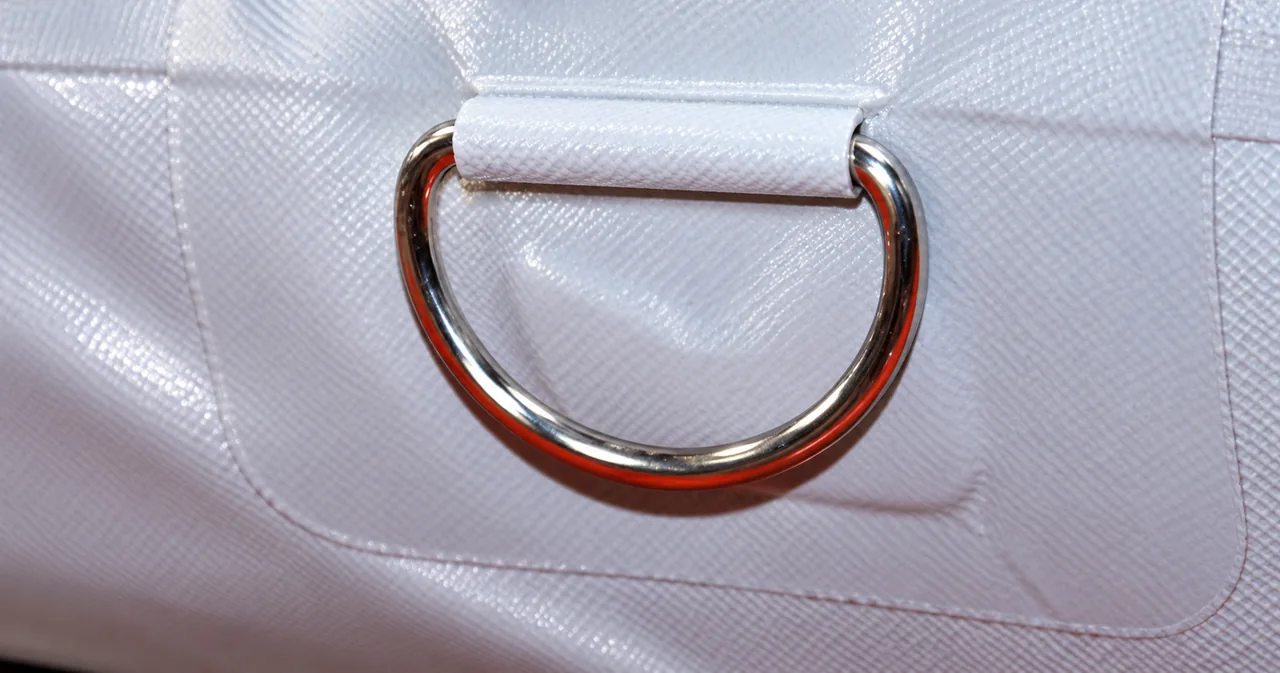

Reinforced attachment points
Short webbing secures the metal D-ring over a rounded reinforcing patch, creating an attachment point on the cover.

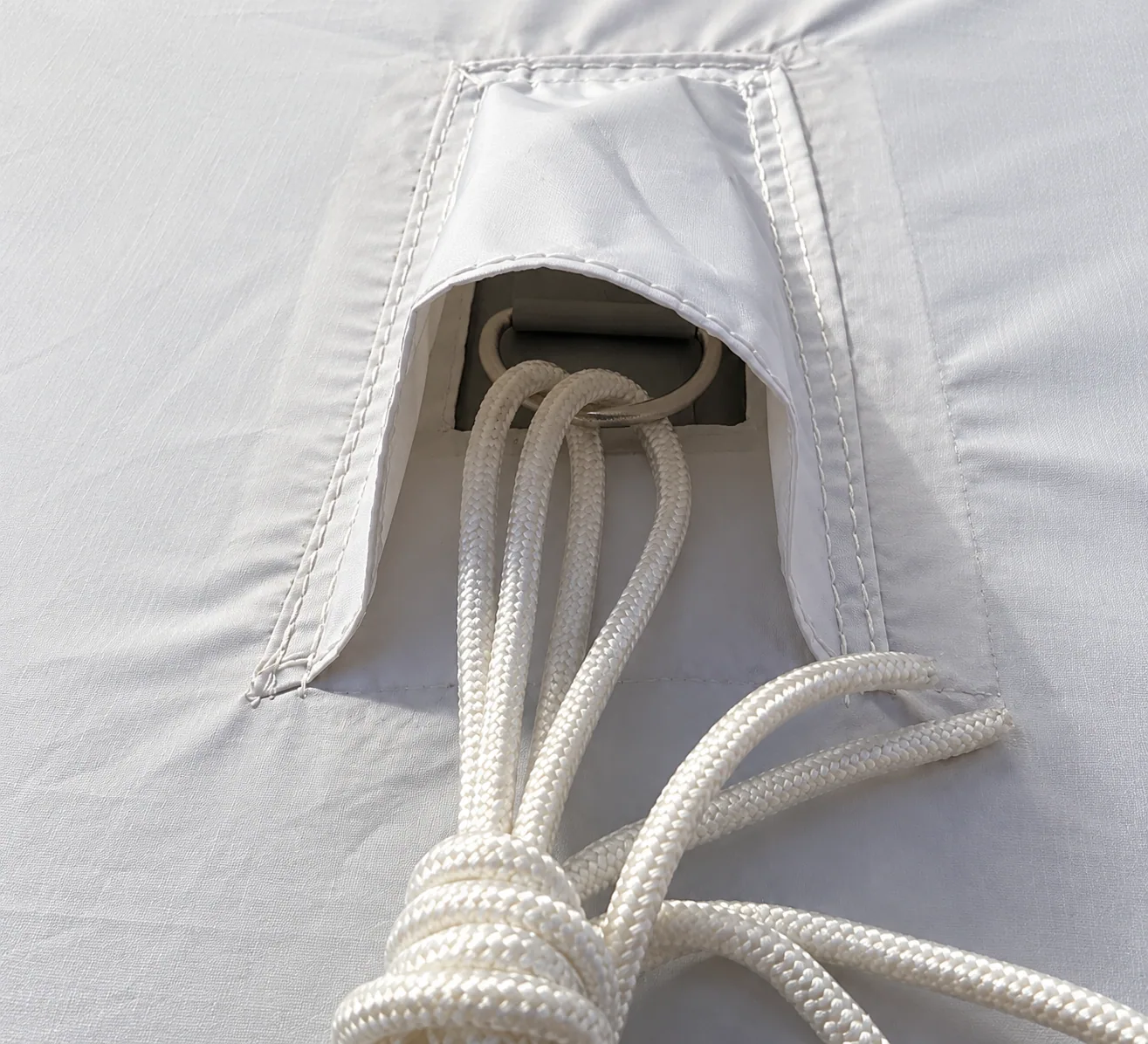

Covered guy-rope connection
A separate connection sits beneath a fabric flap, with woven rope passing through an internal ring.
- 1Internal ring connection
Ring beneath the protective cover.
- 2White woven guy rope
Guy rope extending from the attachment.
- 3Protective outer flap
Lift-up fabric cover.
Specifications
- SKU
- WK-796021307416
- Brand
- WKEME
- Frame
- PVC inflatable air beams
- Cover
- Oxford fabric
- Areas
- 12 / 15 / 20 / 30 / 40 / 50 / 60 m²
- Windows
- Mesh panels with roll-up outer covers
- Entrance
- Inner and outer zipper closures
- Attachments
- Reinforced D-rings and covered guy-rope points
