A ridge shelter for temporary accommodation
The blue enclosure has an end entrance and several windows along its long sides. Its rectangular footprint suits temporary accommodation and relief-camp layouts.
Shelter & Warmth
12 m² Relief Tent
Built with a powder-coated steel frame and Oxford fabric cover, this 3.2 × 3.7 m ridge tent features mesh windows, roll-up curtains, and an end entrance. It is available in single-layer and insulated configurations.
Tap image to enlargeClick image to enlarge
01 05
- Nominal area
- 12 m²
- Footprint
- 3.2 × 3.7 m
- Frame
- Powder-coated steel tubing
- Practical 12 m² footprint
- Sectional tubular frame
- Optional insulated construction
A closer look
Product details
12 m² shelter format
A 3.2 × 3.7 m footprint provides the nominal 12 m² floor area. Single-layer and insulated builds offer different enclosure options, with lettering and custom-size options also available.
| Feature | Specification |
|---|---|
| Footprint | 3.2 × 3.7 m |
| Nominal area | 12 m² |
| Frame | White powder-coated steel tubing |
| Outer cover | Oxford fabric |
| Enclosure options | Single-layer or insulated |
| Printing | Custom lettering |

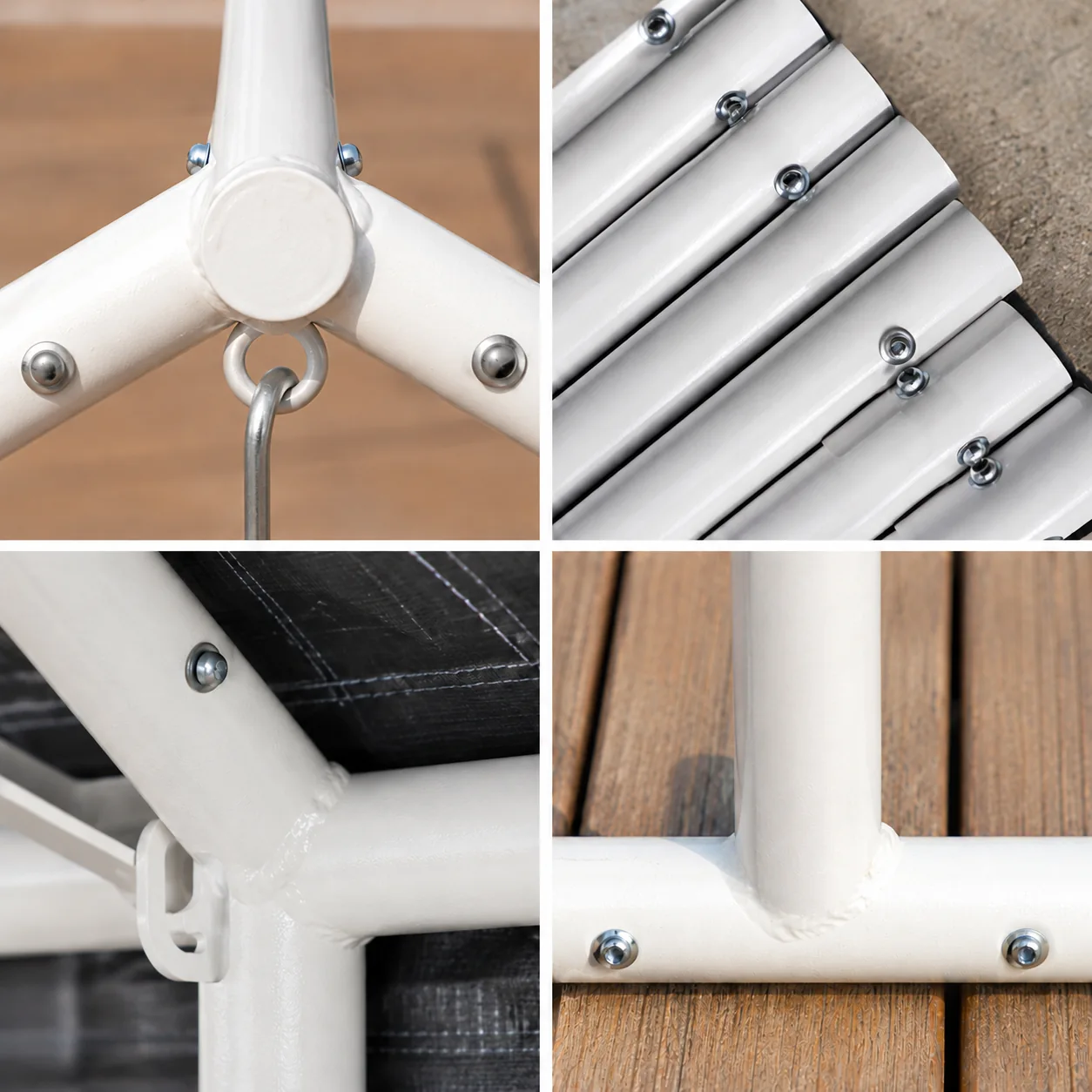

Sectional frame connections
The tubular frame combines roof members, horizontal sections and bracing, joined with ridge fittings, clips, corners and T-fittings.
- 1Multi-way ridge fitting
Connects the sloping roof members.
- 2Tube-end clip joint
Secures adjacent tube sections.
- 3Corner fitting
Joins members at the roof corner.
- 4T-fitting
Connects vertical and horizontal members.

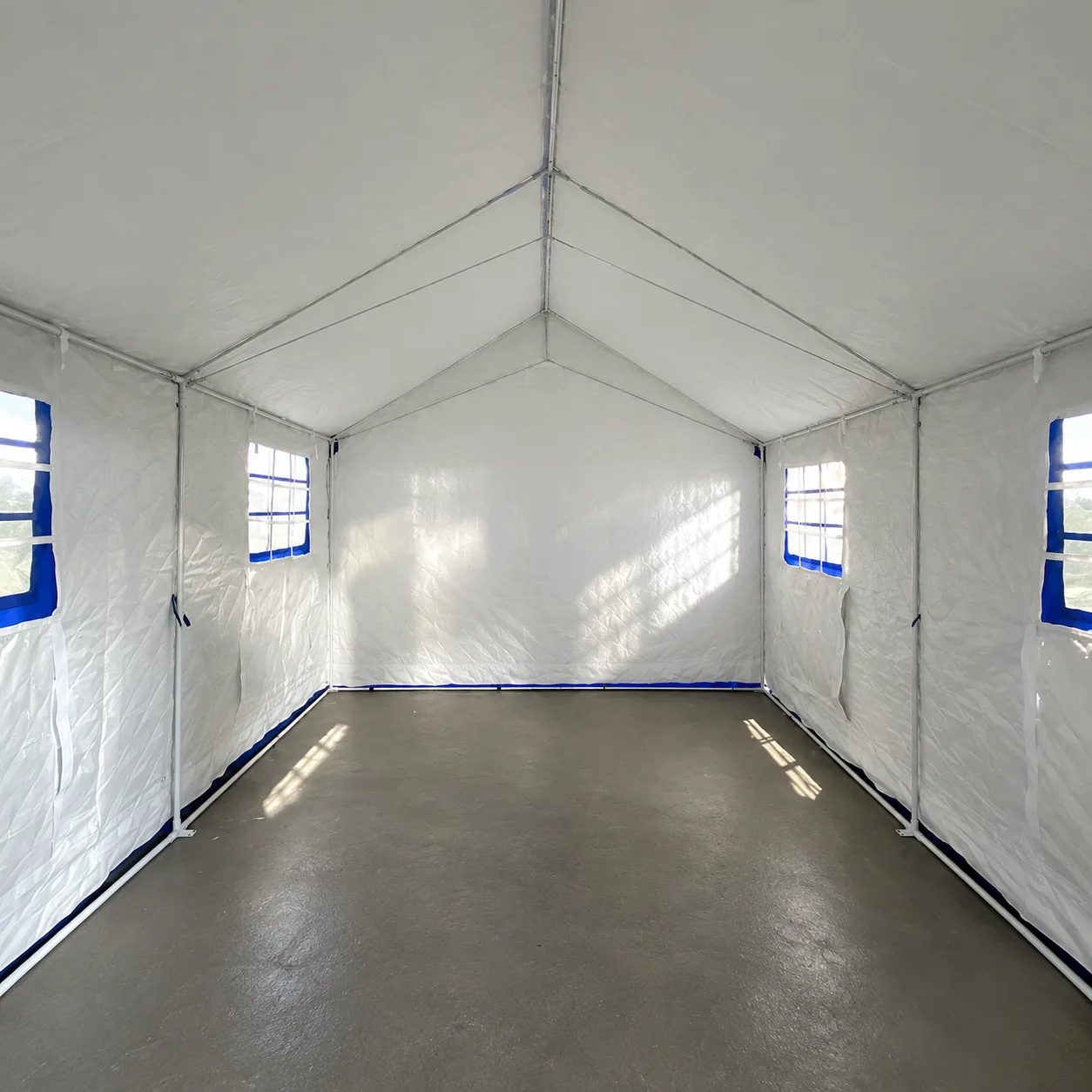

Removable liner option
The insulated configuration adds a removable white cotton liner beneath the outer cover, creating a lined interior around the frame.
Coated Oxford outer cover
The outer cover uses densely woven Oxford fabric with a coated finish. Bound seams follow the ridge-roof shape and the wall panels.

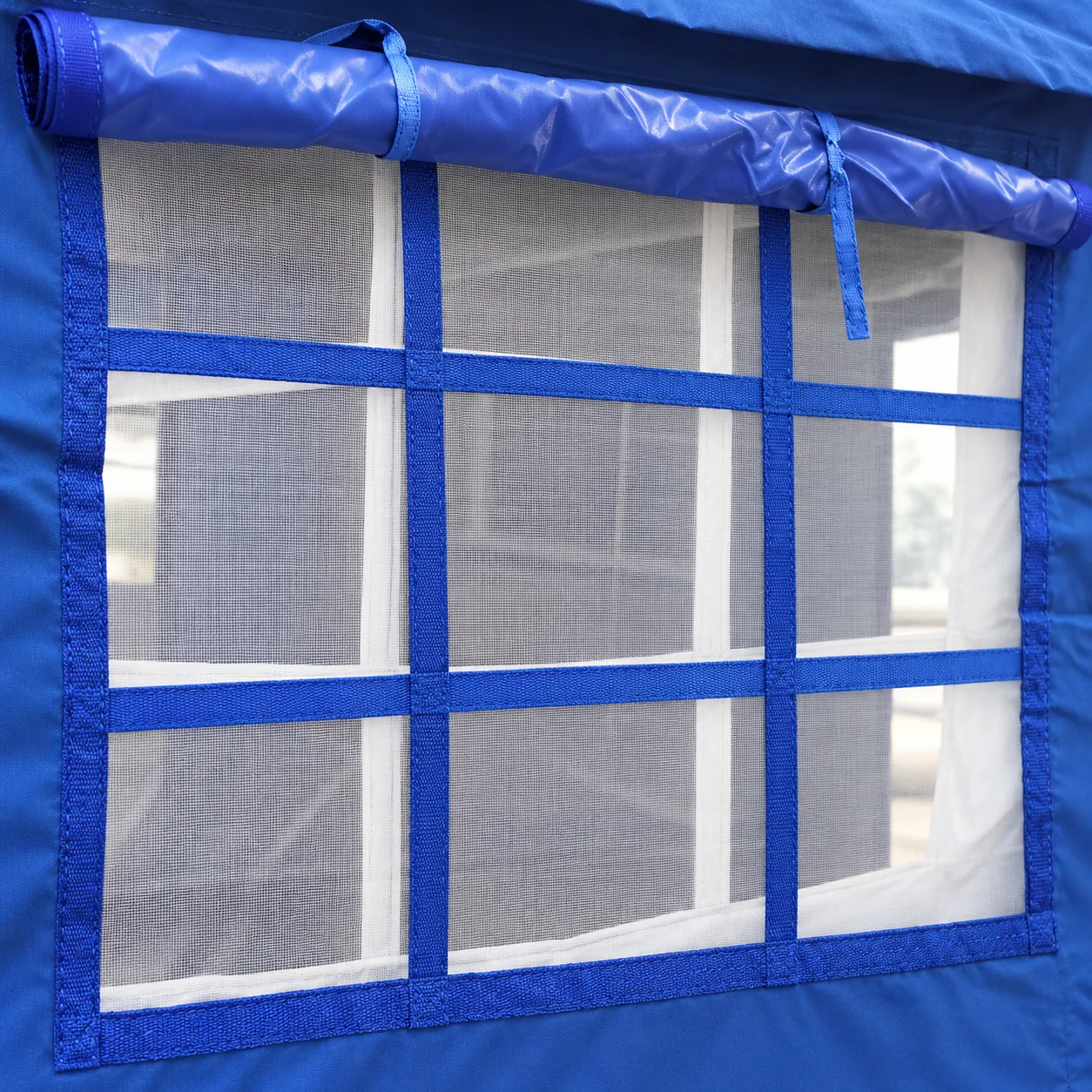

Mesh windows with roll-up curtains
Inner mesh panels and outer fabric curtains form a two-layer window arrangement. Rolled-up curtains open the mesh to airflow; lowered curtains provide privacy.

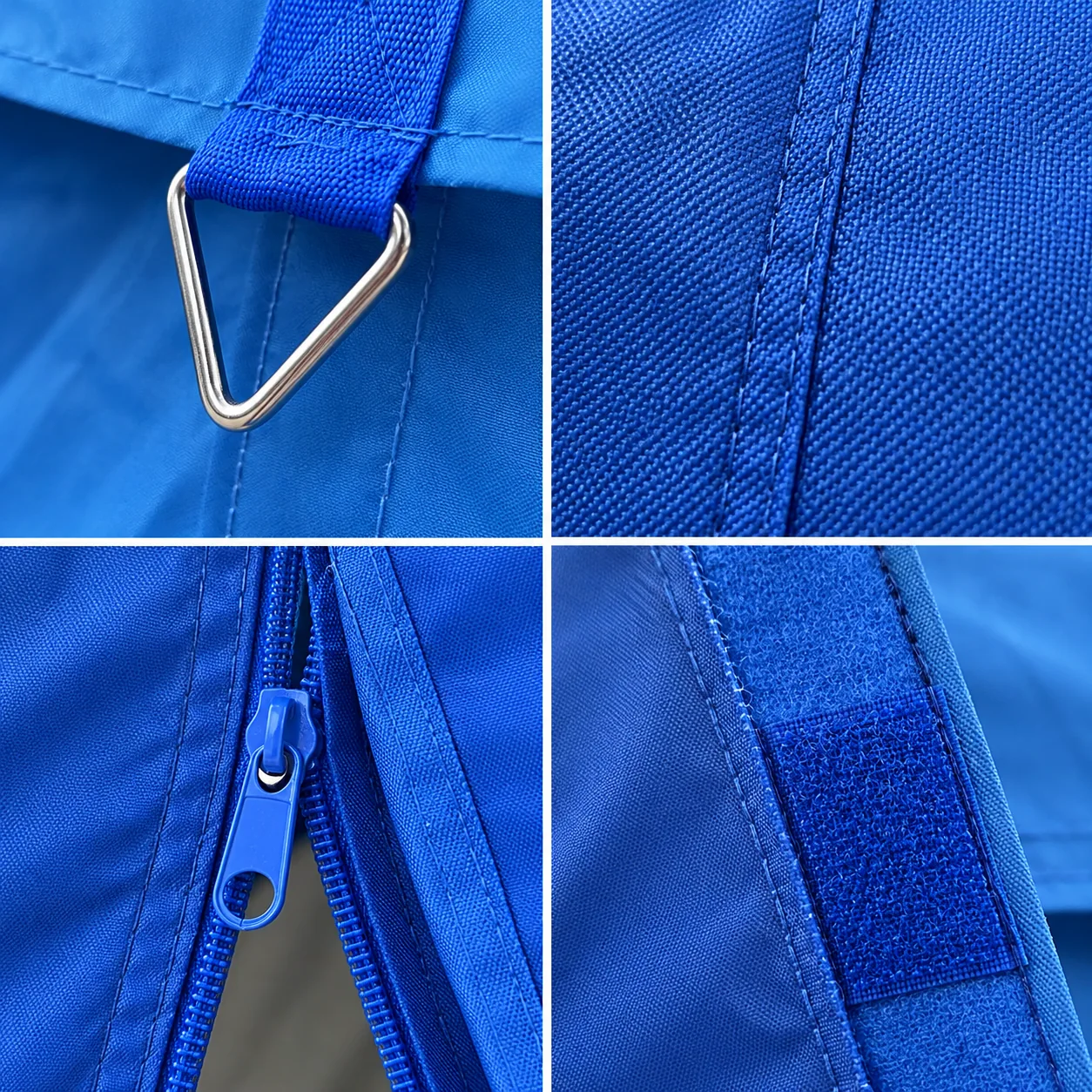

Closure and guying details
Triangular guy-rope loops are sewn into the cover. The entrance combines zipper and hook-and-loop fastenings, with bound edges around the openings.
A repeatable camp format
The rectangular ridge-tent format works as a single shelter or as part of a planned group of temporary accommodation units.
Specifications
- SKU
- WK-796181482760
- Brand
- WKEME
- Nominal area
- 12 m²
- Footprint
- 3.2 × 3.7 m
- Frame
- Powder-coated steel tubing
- Cover
- Oxford fabric
- Configuration
- Single-layer or insulated
- Insulated option
- Removable cotton liner
- Windows
- Inner mesh with roll-up outer curtains
- Entrance
- Zipper and hook-and-loop closures
