Shelter & WarmthModel ZX-2534

Modular Steel-frame Ridge Tent

Name: Modular Steel-frame Ridge Tent
Brand: WKEME
SKU: WK-736547801544

A modular steel-frame ridge tent featuring Oxford fabric panels, screened windows, and roll-up covers, offered in single-layer, round-tube, and insulated configurations.

Tap image to enlargeClick image to enlarge

01 05

Model: ZX-2534
Frame: Sectional steel tube
Cover: Oxford fabric

Sectional steel frame
Multiple footprint options
Roll-up window covers

Request a quotesales@wkeme.com

A closer look

Product details

A configurable ridge shelter

A sectional steel frame supports the Oxford fabric enclosure. Green and camouflage covers, single-layer and insulated builds, and several footprints make up the range.

Size and frame options

The tent comes with an ordinary or round-tube frame, with insulated covers available in selected sizes.

Configuration	Size
Ordinary, nominal 2 × 3 m	1.9 × 2.9 m footprint; without base rails
Ordinary, nominal 3 × 4 m	3.7 × 2.7 m footprint; with base rails
Ordinary large formats	4.6 × 6 / 4.6 × 8 / 4.6 × 10 m
Round-tube, with base rails	3 × 4 / 4.6 × 6 / 4.6 × 8 / 4.6 × 10 m
Green insulated	Nominal 2 × 3 m
420D Oxford insulated	2.7 × 3.7 m

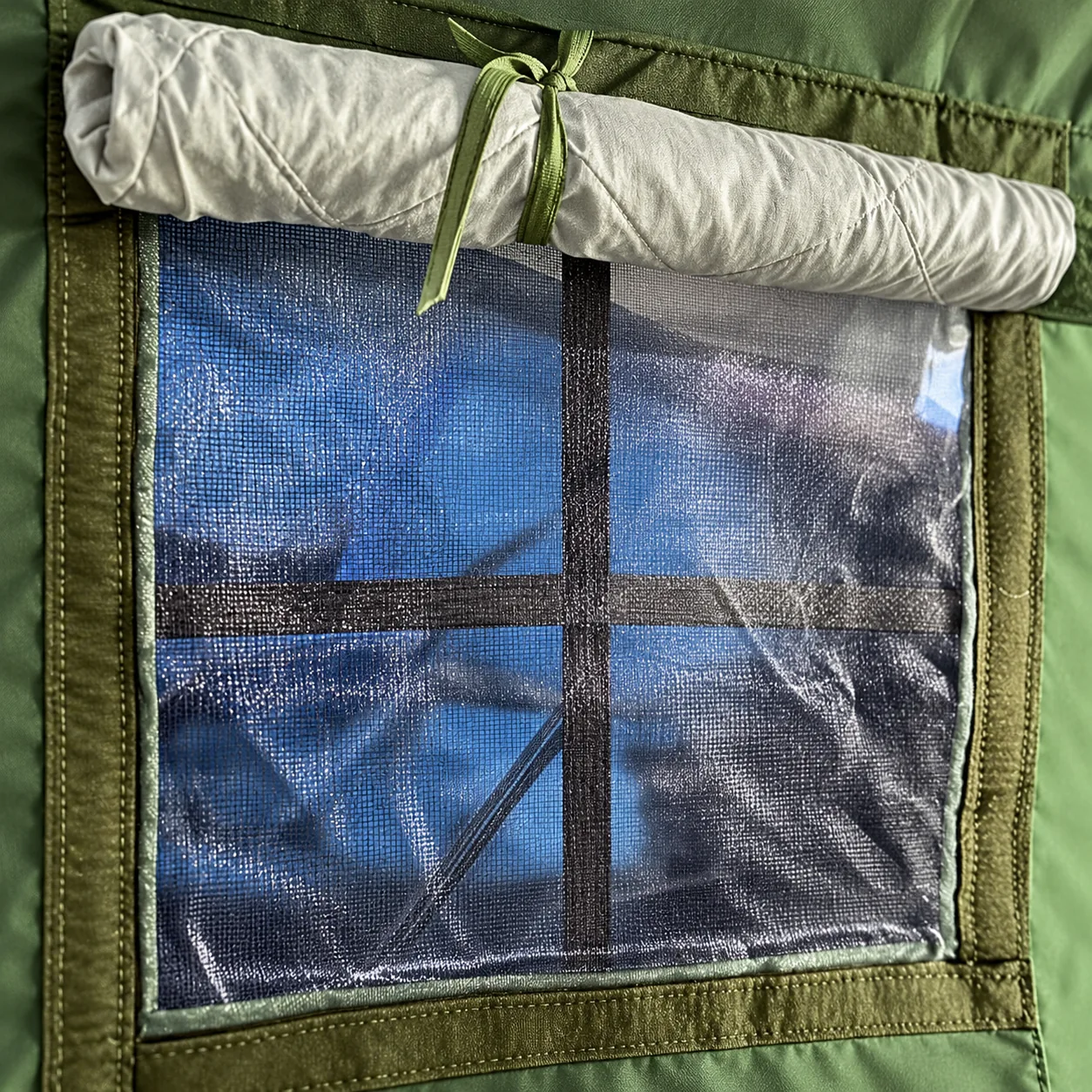

Screened windows with roll-up covers

Mesh windows bring ventilation into the enclosure, while the outer covers roll down for privacy. Fabric ties hold the covers above the openings.

Cover attachments and entrance closure

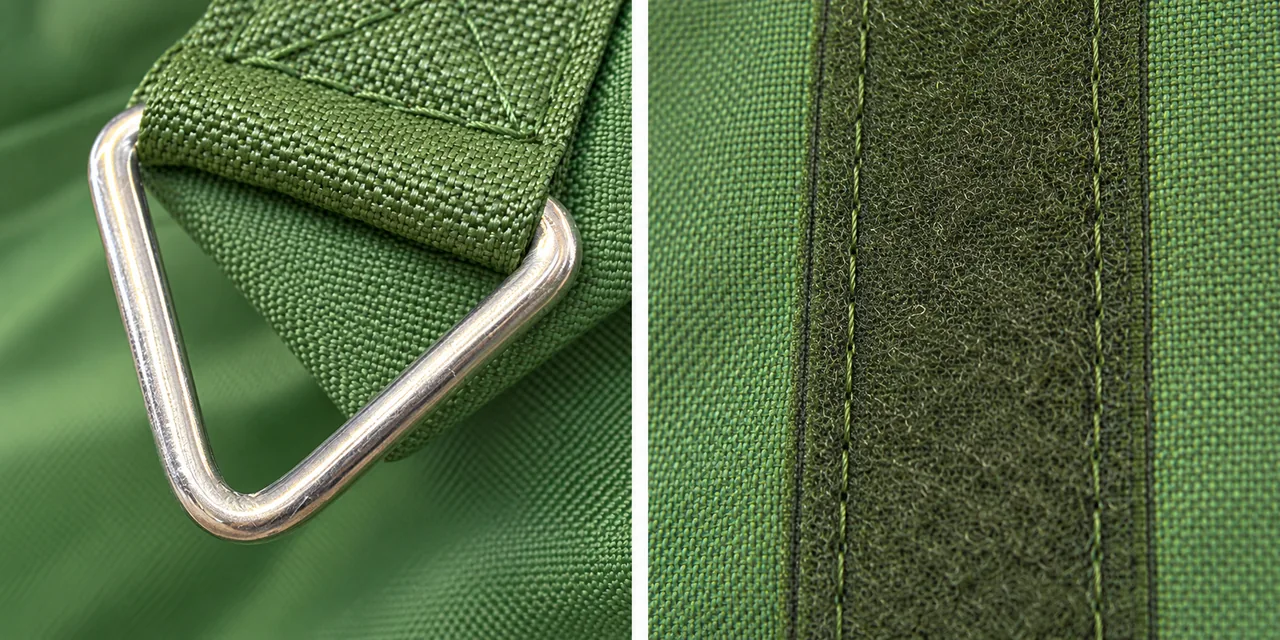

Webbing-backed triangular loops provide attachment points around the cover. Wide hook-and-loop strips run along the entrance flap.

1
Triangular tie loop
Webbing-backed attachment point.
2
Wide fastening strip
Hook-and-loop entrance closure.

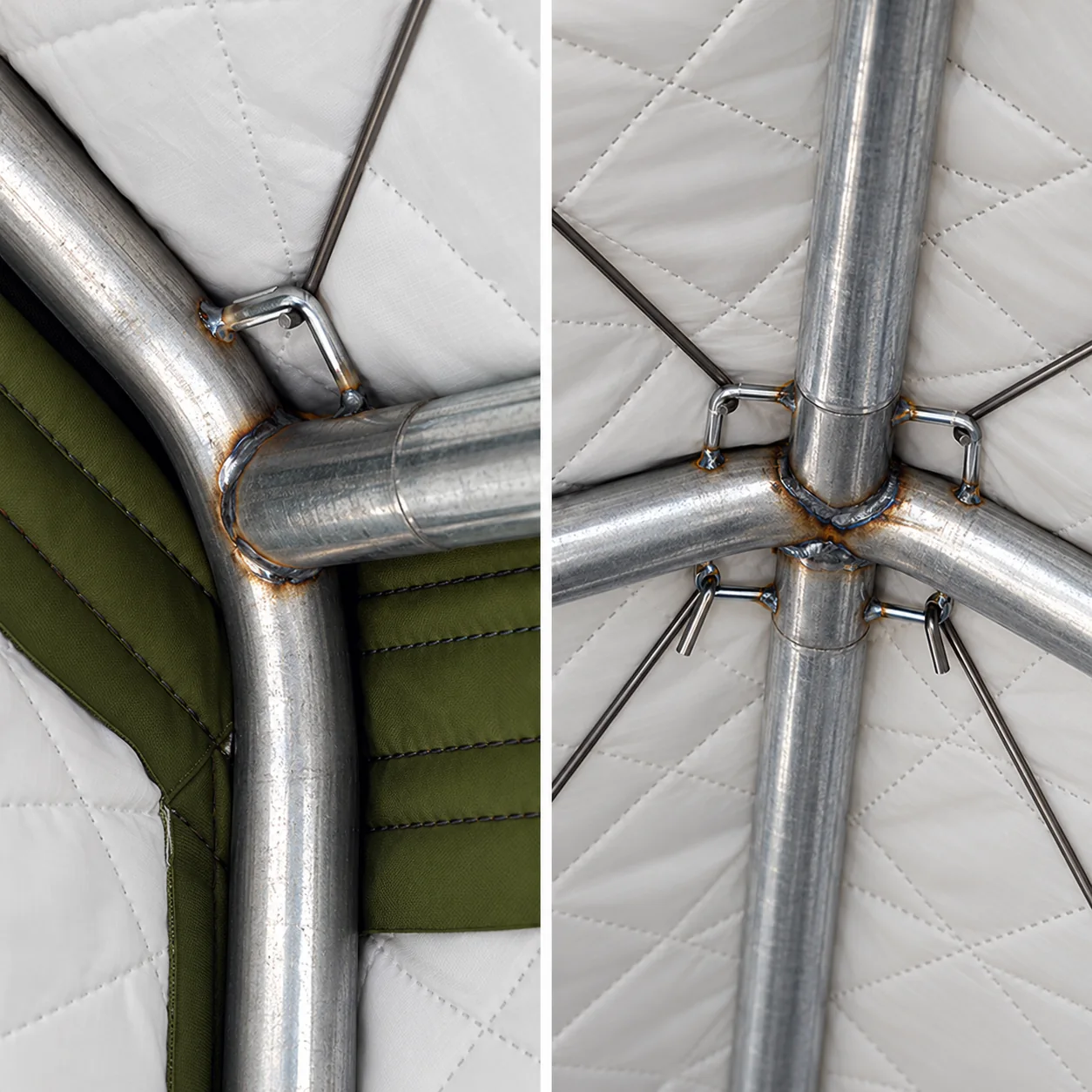

Sectional steel frame

Separate steel tubes join through ridge fittings and corner connectors, forming the roof, doorway and wall structure.

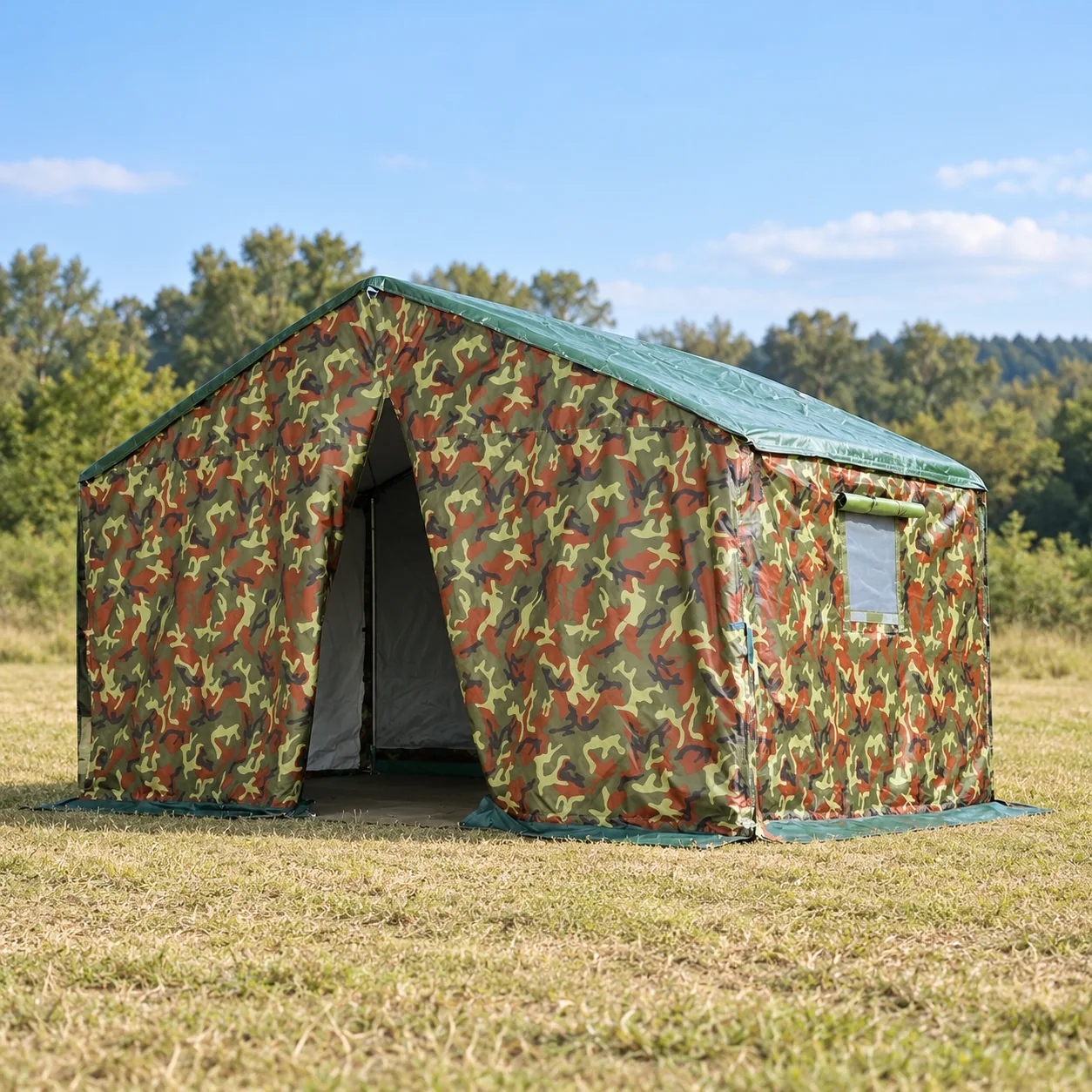

Temporary field accommodation

The ridge-roof layout creates a practical enclosure for temporary accommodation and work-site shelter. Multiple footprints and enclosure options suit different site layouts.
